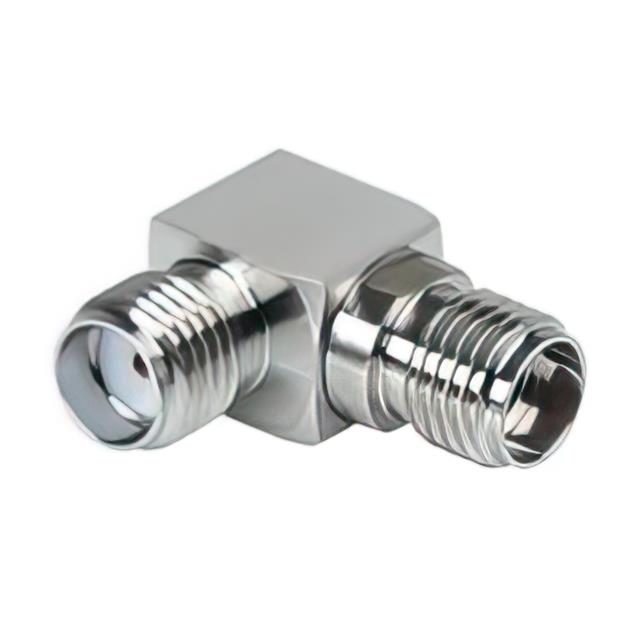

SFR-KF50+
ActiveMINI-CIRCUITS
ADPTR R/A 2.92MM-F/ SMA-F ROHS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SFR-KF50+
ActiveMINI-CIRCUITS
ADPTR R/A 2.92MM-F/ SMA-F ROHS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SFR-KF50+ |
|---|---|
| Adapter Series | SMA |
| Adapter Series | 2.92 mm |
| Adapter Type | Jack to Jack |
| Body Finish | Tri-Metal |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Female to Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | Female Socket, SMA Jack |
| Convert To (Adapter End) | 2.92 mm |
| Convert To (Adapter End) | OS-2.9 Jack, Female Socket |
| Frequency - Max [Max] | 18 GHz |
| Impedance | 50 Ohms |
| Insertion Loss | 0.08 dB |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -55 °C |
| Style | Right Angle |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 42.42 | |
| 25 | $ 41.54 | |||
Description
General part information
SFR-KF50+
Adapter Coaxial Connector SMA Jack, Female Socket To 2.92mm (OS-2.9) Jack, Female Socket 50 Ohms
