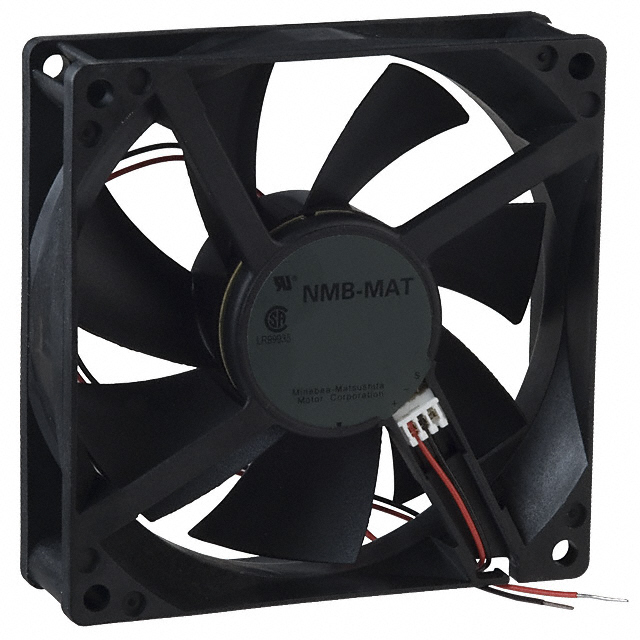

FBA09A24H1AZ
ObsoleteNMB TECHNOLOGIES
FAN AXIAL 92X25.5MM 24VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
FBA09A24H1AZ
ObsoleteNMB TECHNOLOGIES
FAN AXIAL 92X25.5MM 24VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FBA09A24H1AZ |
|---|---|
| Air Flow | 56.8 CFM |
| Air Flow | 1.59 mł/min |
| Approval Agency | CSA, UL |
| Bearing Type | Hydro-wave (HWB) |
| Current Rating (Amps) | 140 mA |
| Fan Type | Tubeaxial |
| Lifetime @ Temp. | 50000 Hrs |
| Noise | 35 dB |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 3.36 W |
| RPM | 2900 RPM |
| Static Pressure | 42.1 Pa |
| Static Pressure | 0.169 in H2O |
| Termination | 2 Wire Leads |
| Voltage - Rated | 24 VDC |
| Voltage Range [Max] | 27.6 VDC |
| Voltage Range [Min] | 14 VDC |
| Weight | 0.243 lb |
| Weight | 110.22 g |
| Width [x] | 25.5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
FBA09A24H1AZ
Fan Tubeaxial 24VDC Square - 92mm L x 92mm H Hydro-wave (HWB) 56.8 CFM (1.59mł/min) 2 Wire Leads
