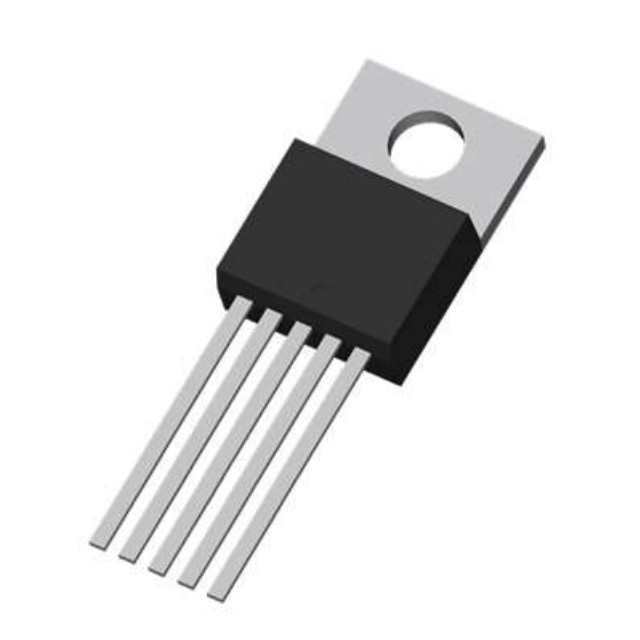

LM1501AGT-12
ActiveTAEJIN
IC REG BUCK 12V 5A TO220-5
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LM1501AGT-12
ActiveTAEJIN
IC REG BUCK 12V 5A TO220-5
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LM1501AGT-12 |
|---|---|
| Current - Output | 5 A |
| Function | Step-Down |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | 1.81 mOhm |
| Package / Case | TO-220-5 |
| Supplier Device Package | TO-220-5L |
| Synchronous Rectifier | False |
| Topology | Buck |
| Voltage - Output (Min/Fixed) | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 100 | $ 1.60 | |
Description
General part information
LM1501AGT-12
Buck Switching Regulator IC Positive Fixed 12V 1 Output 5A TO-220-5
