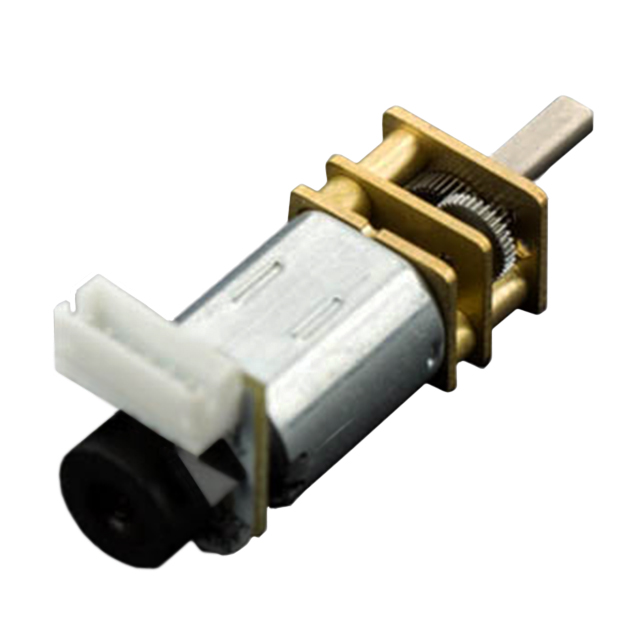

FIT0482
ActiveDFROBOT
GEARMOTOR 310 RPM 6V MICRO METAL
Deep-Dive with AI
Search across all available documentation for this part.
FIT0482
ActiveDFROBOT
GEARMOTOR 310 RPM 6V MICRO METAL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FIT0482 |
|---|---|
| Diameter - Shaft [diameter] | 3 mm |
| Diameter - Shaft [diameter] | 0.118 in |
| Encoder Type | Incremental |
| Gear Reduction Ratio | 50 |
| Length - Shaft and Bearing [x] | 0.394 in |
| Length - Shaft and Bearing [x] | 10 mm |
| Mounting Hole Spacing | 12 mm |
| Mounting Hole Spacing | 0.472 " |
| RPM | 310 RPM |
| Size / Dimension [x] | 10 mm |
| Size / Dimension [x] | 0.394 " |
| Size / Dimension [y] | 12 mm |
| Size / Dimension [y] | 0.472 " |
| Termination Style | Connector |
| Torque - Rated (oz-in / mNm) | 4.86 oz-in |
| Torque - Rated (oz-in / mNm) | 34.32 mNm |
| Type | DC Motor |
| Voltage - Rated | 6 VDC |
| Weight | 0.04 lb |
| Weight | 18.14 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.90 | |
Description
General part information
FIT0482
DC Motor Gearmotor 310 RPM Incremental 6VDC
