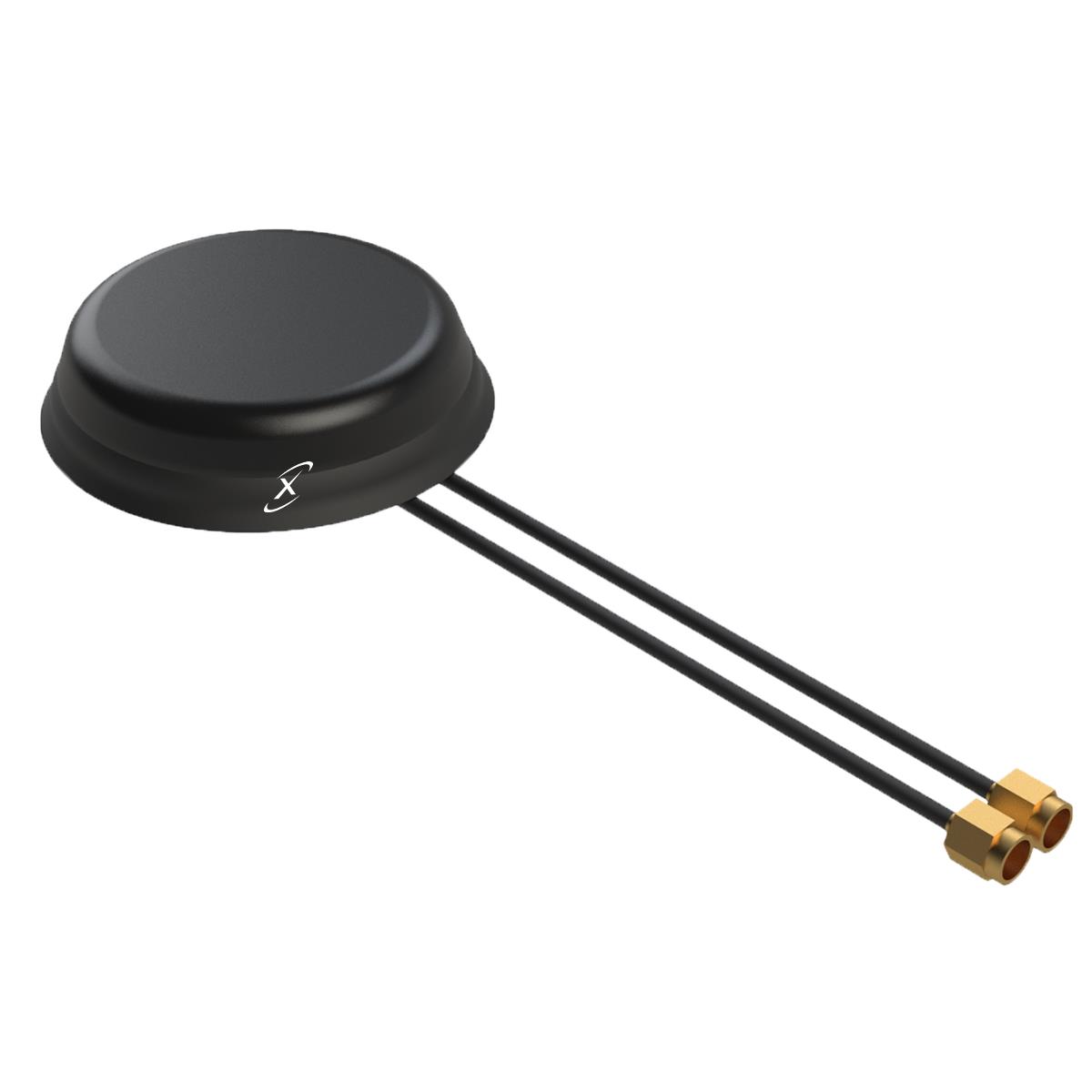

MEA-868-IGG/100-00251-01
ActiveMaxtena Inc
868 MHZ ISM/GPS/GLONASS SCREW MO
Deep-Dive with AI
Search across all available documentation for this part.
MEA-868-IGG/100-00251-01
ActiveMaxtena Inc
868 MHZ ISM/GPS/GLONASS SCREW MO
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MEA-868-IGG/100-00251-01 |
|---|---|
| Antenna Type | Module |
| Applications | GLONASS, GPS, ISM |
| Features | Cable - 2m, Filter |
| Frequency (Center/Band) | 1.602 GHz, 866.5 MHz, 1.575 GHz |
| Frequency Range [Max] | 1.606 GHz, 870 MHz |
| Frequency Range [Min] | 1.598 GHz, 863 MHz |
| Gain | 3.2 dBi, 28 dBi |
| Ingress Protection | IP67, IP69 |
| Mounting Type | Screw |
| Number of Bands | 3 |
| Power - Max [Max] | 25 W |
| Return Loss [Max] | -14.7 dB |
| Return Loss [Min] | -15 dB |
| RF Family/Standard | General ISM, Navigation |
| VSWR | 1.5, 1.4 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Box (TB) | 1 | $ 42.00 | |
| 10 | $ 40.00 | |||
| 25 | $ 38.00 | |||
Description
General part information
MEA-868-IGG/100-00251-01
866.5MHz, 1.575GHz, 1.602GHz GLONASS, GPS, ISM Module RF Antenna 863MHz ~ 870MHz, 1.598GHz ~ 1.606GHz 3.2dBi, 28dBi, 28dBi SMA Male Screw
Documents
Technical documentation and resources
No documents available
