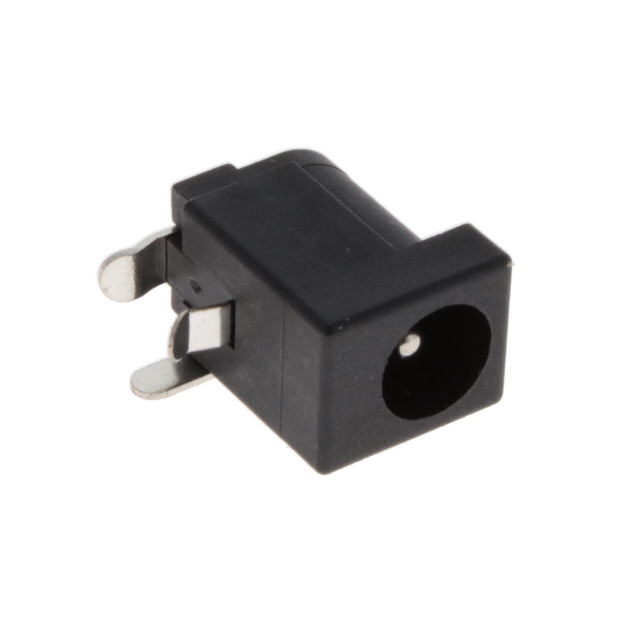

KLDHCX-0202-AC-1
ActiveKycon, Inc.
CONN POWER JACK SOLDER 2.0MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
KLDHCX-0202-AC-1
ActiveKycon, Inc.
CONN POWER JACK SOLDER 2.0MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | KLDHCX-0202-AC-1 |
|---|---|
| Actual Diameter [diameter] | 0.252 ", 0.079 in |
| Actual Diameter [diameter] | 2 mm, 6.4 mm |
| Body Color | Black |
| Connector Type | Jack |
| Contact Material | Brass, Phosphor Bronze |
| Contact Material - Plating | Tin |
| Current Rating (Amps) | 5 A |
| Gender | Male |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Industry Recognized Mating Diameter [diameter] | 0.079 in, 0.217 " |
| Industry Recognized Mating Diameter [diameter] | 2 mm, 5.5 mm |
| Internal Switch(s) | Single Switch, Normally Closed |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions/Contacts | 3 Conductors, 2 Conductors |
| Shielding | Unshielded |
| Termination | Kinked Pin, Solder |
| Voltage - Rated | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 1.39 | |
| 10 | $ 1.21 | |||
| 25 | $ 1.15 | |||
| 50 | $ 1.13 | |||
| 100 | $ 1.08 | |||
| 250 | $ 0.97 | |||
| 500 | $ 0.90 | |||
| 1000 | $ 0.77 | |||
| 2500 | $ 0.72 | |||
Description
General part information
KLDHCX-0202-AC-1
Power Barrel Connector Jack 2.00mm ID (0.079"), 5.50mm OD (0.217") Through Hole, Right Angle
