MLG0603P1N2STD25
ActiveEPCOS - TDK Electronics
FIXED IND 1.2NH 800MA 80MOHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MLG0603P1N2STD25
ActiveEPCOS - TDK Electronics
FIXED IND 1.2NH 800MA 80MOHM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MLG0603P1N2STD25 |
|---|---|
| Current Rating (Amps) | 800 mA |
| DC Resistance (DCR) [Max] | 80 mOhm |
| Frequency - Self Resonant | 10 GHz |
| Height - Seated (Max) [Max] | 0.33 mm |
| Height - Seated (Max) [Max] [z] | 0.013 " |
| Inductance | 1.2 nH |
| Inductance Frequency - Test | 500 MHz |
| Material - Core | Non-Magnetic |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 0603 Metric |
| Package / Case | 0201 |
| Q @ Freq | 500 MHz, 14 |
| Ratings | AEC-Q200 |
| Shielding | Unshielded |
| Size / Dimension [x] | 0.6 mm |
| Size / Dimension [x] | 0.024 " |
| Size / Dimension [y] | 0.3 mm |
| Size / Dimension [y] | 0.012 " |
| Supplier Device Package | 0603 Metric |
| Supplier Device Package | 0201 |
| Tolerance | 0.3 nH |
| Type | Multilayer |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 15000 | $ 0.02 | |
Description
General part information
MLG0603P1N2STD25

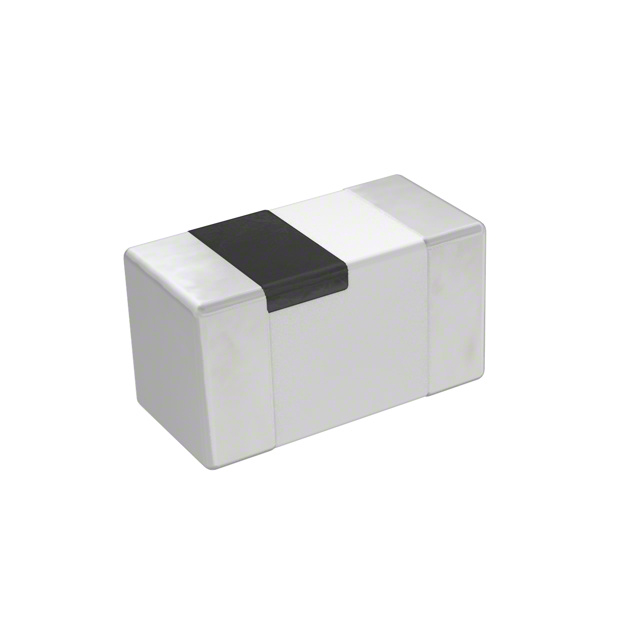

1.2 nH Unshielded Multilayer Inductor 800 mA 80mOhm Max 0201 (0603 Metric)
