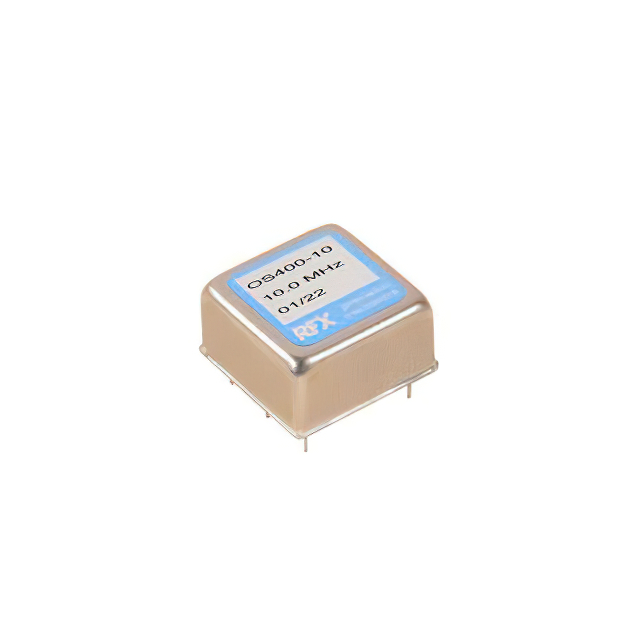

OS400-2465-014
ActiveRFX Group
LOW PHASE NOISE -178DBC/HZ OCXO
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
OS400-2465-014
ActiveRFX Group
LOW PHASE NOISE -178DBC/HZ OCXO
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | OS400-2465-014 |
|---|---|
| Base Resonator | Crystal |
| Frequency | 24.576 MHz |
| Frequency Stability | 10 ppb |
| Height - Seated (Max) [Max] | 0.394 in |
| Height - Seated (Max) [Max] | 10 mm |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Output | Sine Wave |
| Size / Dimension [x] | 20.75 mm |
| Size / Dimension [x] | 0.817 in |
| Size / Dimension [y] | 20.75 mm |
| Size / Dimension [y] | 0.817 in |
| Type | OCXO |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 5 | $ 306.25 | |
Description
General part information
OS400-2465-014
24.576 MHz OCXO Sine Wave Oscillator 3.3V
