Technical Specifications
Parameters and characteristics for this part
| Specification | 08098880 |
|---|---|
| Circuit | SPST |
| Current Rating (Amps) | 250 A |
| Electrical Life | 5000 Steps |
| Illumination | Non-Illuminated |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Mechanical Life | 5000 Cycles |
| Mounting Type | Chassis Mount |
| Number of Positions | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Panel Cutout Dimensions [diameter] | 24 mm |
| Switch Function | On-Off |
| Termination Style | Stud |
| Type | Battery Disconnect |
| Voltage Rating - DC | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 88.16 | |
| 5 | $ 82.87 | |||
| 10 | $ 74.93 | |||
| 30 | $ 70.52 | |||
| 50 | $ 65.01 | |||
| 100 | $ 61.71 | |||
Description
General part information
08098880

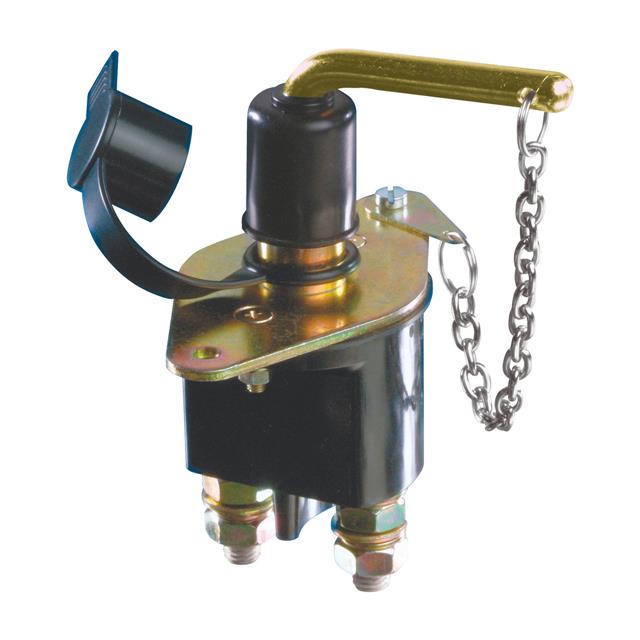

Selector Switch 2 Position SPST 250A (DC) Chassis Mount
