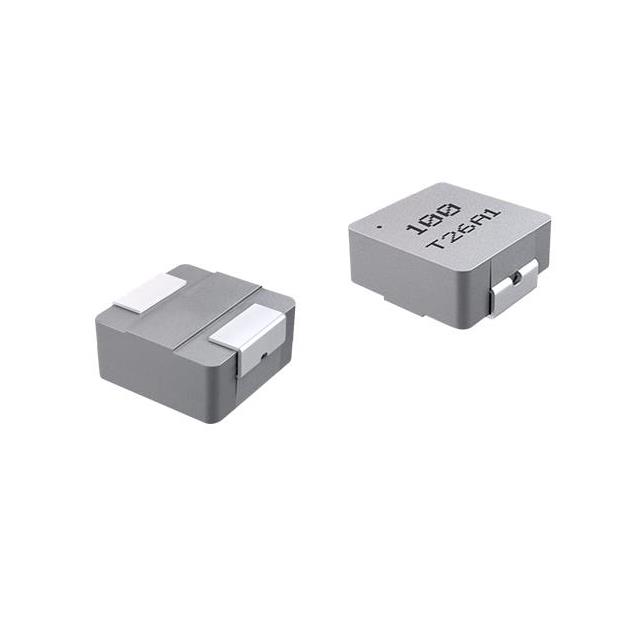

CSHB0530R-5R6M
ActiveCODACA
SMD MOLDING POWER CHOKE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CSHB0530R-5R6M |
|---|---|
| Current - Saturation (Isat) | 6.5 A |
| Current Rating (Amps) | 5.5 Amps |
| DC Resistance (DCR) | 45 mOhm |
| Height - Seated (Max) | 3 mm |
| Height - Seated (Max) [Max] | 0.118 in |
| Inductance | 5.6 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Alloy Powder |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension [x] | 5.8 mm |
| Size / Dimension [x] | 0.228 in |
| Size / Dimension [y] | 5.2 mm |
| Size / Dimension [y] | 0.205 " |
| Tolerance | 20 % |
| Type | Molded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.58 | |
| 10 | $ 1.34 | |||
| 25 | $ 1.23 | |||
| 50 | $ 1.10 | |||
| 100 | $ 0.92 | |||
| 250 | $ 0.89 | |||
| 500 | $ 0.84 | |||
| 1000 | $ 0.79 | |||
| 2500 | $ 0.76 | |||
| Digi-Reel® | 1 | $ 1.58 | ||
| 10 | $ 1.34 | |||
| 25 | $ 1.23 | |||
| 50 | $ 1.10 | |||
| 100 | $ 0.92 | |||
| 250 | $ 0.89 | |||
| 500 | $ 0.84 | |||
| 1000 | $ 0.79 | |||
| 2500 | $ 0.76 | |||
| Tape & Reel (TR) | 8000 | $ 0.65 | ||
Description
General part information
CSHB0530R-5R6M
5.6 µH Shielded Molded Inductor 5.5 A 45mOhm Max Nonstandard
