XZFCBD10A2
ActiveSunLED

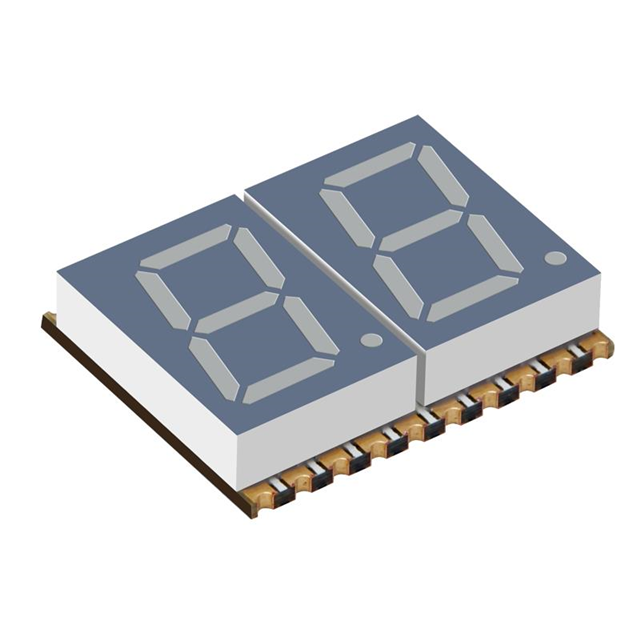

0.4" BLUE DUAL DIGIT CA SMD LED
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XZFCBD10A2
ActiveSunLED
0.4" BLUE DUAL DIGIT CA SMD LED
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XZFCBD10A2 |
|---|---|
| Color | Blue |
| Common Pin | Common Anode |
| Current - Test | 10 mA |
| Digit/Alpha Size | 10.16 mm |
| Digit/Alpha Size [custom] | 0.4 in |
| Display Type | 7-Segment |
| Millicandela Rating | 8.79 mcd |
| Number of Characters | 2 |
| Package / Case | 20-SMD, No Lead |
| Power Dissipation (Max) [Max] | 120 mW |
| Size / Dimension [x] | 0.591 in |
| Size / Dimension [x] | 15 mm |
| Size / Dimension [y] | 0.728 in |
| Size / Dimension [y] | 18.5 mm |
| Size / Dimension [z] | 0.157 " |
| Size / Dimension [z] | 4 mm |
| Voltage - Forward (Vf) (Typ) | 3 V |
| Wavelength - Peak | 460 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 6.22 | |
| 10 | $ 4.40 | |||
| 100 | $ 3.60 | |||
| Digi-Reel® | 1 | $ 6.22 | ||
| 10 | $ 4.40 | |||
| 100 | $ 3.60 | |||
| Tape & Reel (TR) | 250 | $ 2.24 | ||
Description
General part information
XZFCBD10A2
Display Modules - LED Character and Numeric Blue 7-Segment 2 Character Common Anode 3V 10mA 0.591" H x 0.728" W x 0.157" D (15.00mm x 18.50mm x 4.00mm) 20-SMD, No Lead
