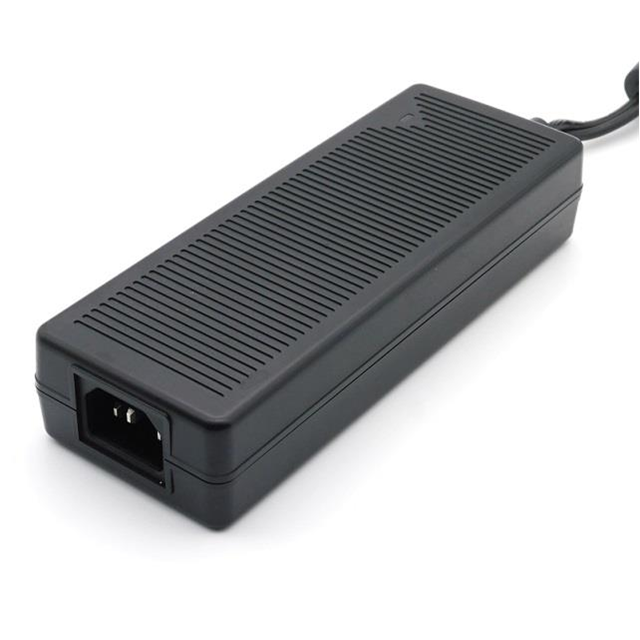

6A-901DB12-028
ActiveENG ELECTRIC CO., LTD
AC/DC DESKTOP ADAPTER 12V 90W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
6A-901DB12-028
ActiveENG ELECTRIC CO., LTD
AC/DC DESKTOP ADAPTER 12V 90W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 6A-901DB12-028 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | AS/NZS, PSE, CB, UKCA, IEC, CSA, UL, FCC |
| Cord Length | 60.2 in |
| Cord Length | 1.53 m |
| Current - Output (Max) [Max] | 7.5 A |
| Efficiency | Level VI |
| Form | Desktop (Class I) |
| Input Connector | IEC 320-C14 |
| Input Type | Cord |
| No Load Power Consumption | 210 mW |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | Barrel Plug |
| Output Connector [diameter] | 5.5 mm, 2.5 mm |
| Output Connector [x] | 9.5 mm |
| Polarization | Positive Center |
| Power (Watts) | 90 W |
| Region Utilized | International |
| Size / Dimension [x] | 167 mm |
| Size / Dimension [x] | 6.57 " |
| Size / Dimension [y] | 62 mm |
| Size / Dimension [y] | 2.44 " |
| Size / Dimension [z] | 34 mm |
| Size / Dimension [z] | 1.34 in |
| Standard Number | 60950-1, 62368-1 |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Book | 1 | $ 45.93 | |
| 10 | $ 43.30 | |||
| 180 | $ 37.40 | |||
| 500 | $ 33.92 | |||
Description
General part information
6A-901DB12-028
12V 90 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
