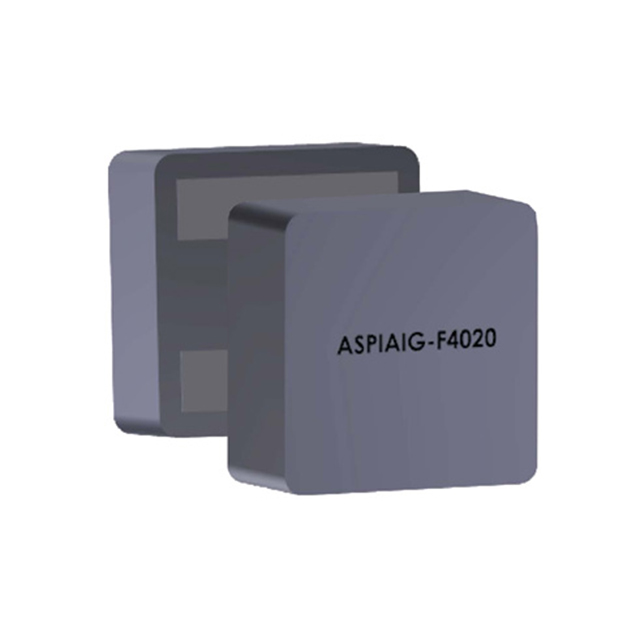

ASPIAIG-F4020-R36M-T
ActiveAbracon LLC
FIXED IND 360NH 14.5A 6.3MOHM SM
Deep-Dive with AI
Search across all available documentation for this part.
ASPIAIG-F4020-R36M-T
ActiveAbracon LLC
FIXED IND 360NH 14.5A 6.3MOHM SM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ASPIAIG-F4020-R36M-T |
|---|---|
| Current - Saturation (Isat) | 15 A |
| Current Rating (Amps) | 14.5 A |
| DC Resistance (DCR) [Max] | 6.3 mOhm |
| Height - Seated (Max) [Max] [z] | 2.1 mm |
| Height - Seated (Max) [Max] [z] | 0.083 " |
| Inductance | 360 nH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Nonstandard |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension [x] | 0.161 in |
| Size / Dimension [x] | 4.1 mm |
| Size / Dimension [y] | 4.1 mm |
| Size / Dimension [y] | 0.161 in |
| Supplier Device Package | 4020 |
| Tolerance | 20 % |
| Type | Molded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 6000 | $ 0.78 | |
Description
General part information
ASPIAIG-F4020-R36M-T
360 nH Shielded Molded Inductor 14.5 A 6.3mOhm Max Nonstandard
