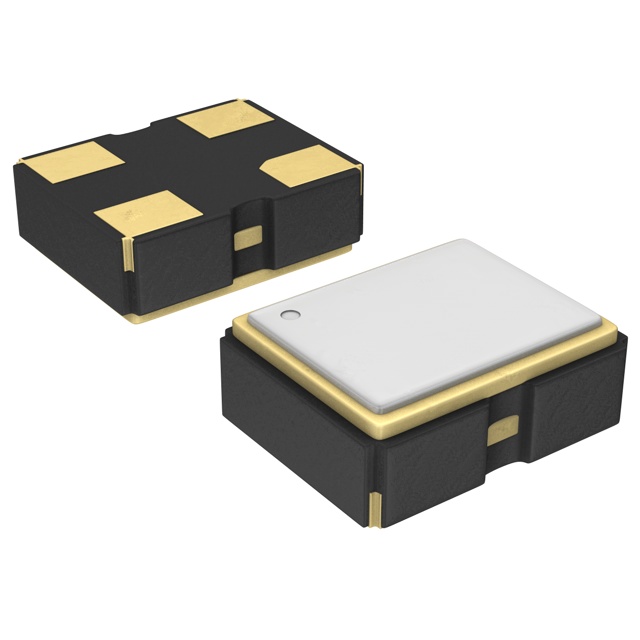

FDD300004
ActiveDiodes Inc
XTAL OSC XO 133.0000MHZ CMOS SMD
Deep-Dive with AI
Search across all available documentation for this part.
FDD300004
ActiveDiodes Inc
XTAL OSC XO 133.0000MHZ CMOS SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FDD300004 |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Disable) (Max) [Max] | 10 ÁA |
| Current - Supply (Max) [Max] | 45 mA |
| Frequency | 133 MHz |
| Frequency Stability | 50 ppm |
| Function | Enable/Disable |
| Height - Seated (Max) [Max] [z] | 1.3 mm |
| Height - Seated (Max) [Max] [z] | 0.051 in |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | CMOS |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 0.197 in |
| Size / Dimension [x] | 5 mm |
| Size / Dimension [y] | 0.126 " |
| Size / Dimension [y] | 3.2 mm |
| Type | XO (Standard) |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1000 | $ 1.25 | |
Description
General part information
FDD300004
133 MHz XO (Standard) CMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
