QX817N-FeH-SE
ActiveBeking Optoelectronics
OPTOISOLATOR TRANSISTOR 817
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
QX817N-FeH-SE
ActiveBeking Optoelectronics
OPTOISOLATOR TRANSISTOR 817
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | QX817N-FeH-SE |
|---|---|
| Current - DC Forward (If) (Max) | 45 mA |
| Current - Output / Channel | 50 mA |
| Current Transfer Ratio (Max) [Max] | 600 % |
| Current Transfer Ratio (Min) [Min] | 80 % |
| Input Type | DC |
| Mounting Type | Surface Mount |
| Number of Channels | 1 |
| Operating Temperature [Max] | 110 °C |
| Operating Temperature [Min] | -55 °C |
| Output Type | 1.81 mOhm |
| Package / Case | 4-SMD, Gull Wing |
| Rise / Fall Time (Typ) [custom] | 3 µs |
| Rise / Fall Time (Typ) [custom] | 4 µs |
| Supplier Device Package | 4-SMD |
| Vce Saturation (Max) | 200 mV |
| Voltage - Forward (Vf) (Typ) | 1.25 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 2000 | $ 0.05 | |
| 4000 | $ 0.04 | |||
| 10000 | $ 0.03 | |||
| 20000 | $ 0.02 | |||
| 40000 | $ 0.02 | |||
Description
General part information

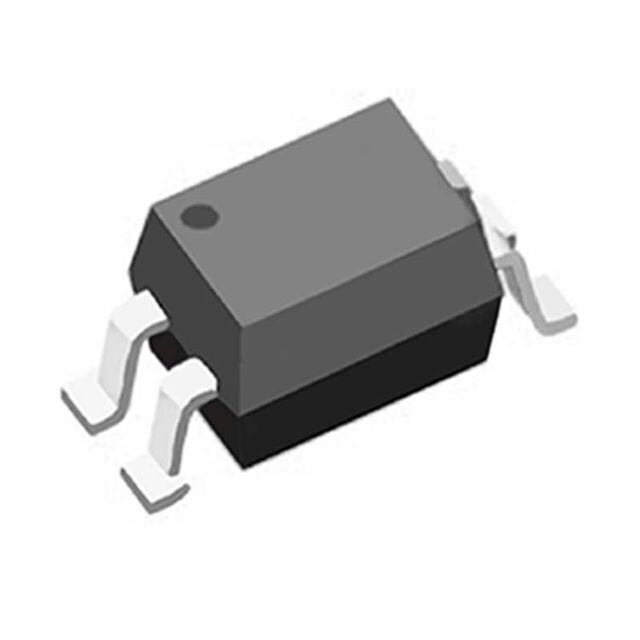

QX817N-FeH-SE
Optoisolator Transistor Output 5000Vrms 1 Channel 4-SMD
