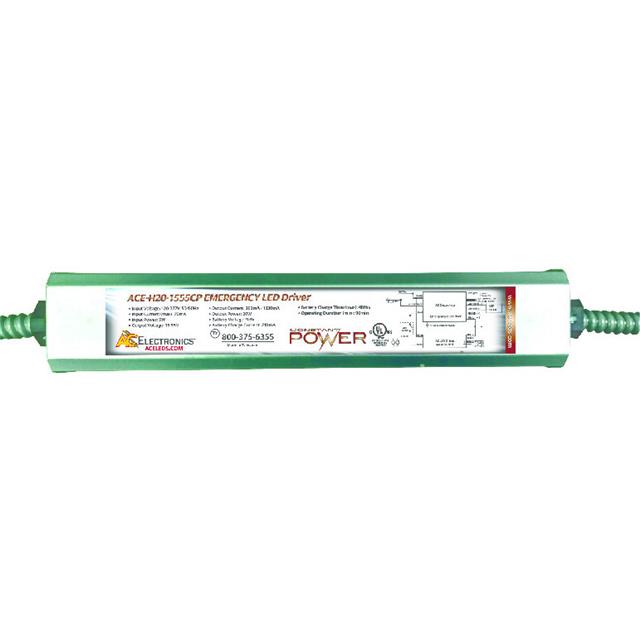

ACE-H20-1555CP
ActiveAC Electronics
20W CONSTANT POWER EMERGENCY BA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ACE-H20-1555CP
ActiveAC Electronics
20W CONSTANT POWER EMERGENCY BA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ACE-H20-1555CP |
|---|---|
| Approval Agency | cULus, FCC |
| Current - Output (Max) [Max] | 1.33 A |
| Dimming | Analog |
| Features | OTP, OVP, SCP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Power (Watts) | 73 W |
| Ratings | IP30 |
| Size / Dimension [x] | 337.8 mm |
| Size / Dimension [x] | 13.3 in |
| Size / Dimension [y] | 2.44 " |
| Size / Dimension [y] | 62 mm |
| Size / Dimension [z] | 1.49 in |
| Size / Dimension [z] | 37.8 mm |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Power |
| Voltage - Input (Max) [Max] | 277 VAC |
| Voltage - Input (Min) [Min] | 120 VAC |
| Voltage - Output [Max] | 55 V |
| Voltage - Output [Min] | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 140.35 | |
Description
General part information
ACE-H20-1555CP
1.33A 15 ~ 55V Constant Power LED Driver AC DC Converter Topology 1 Output
