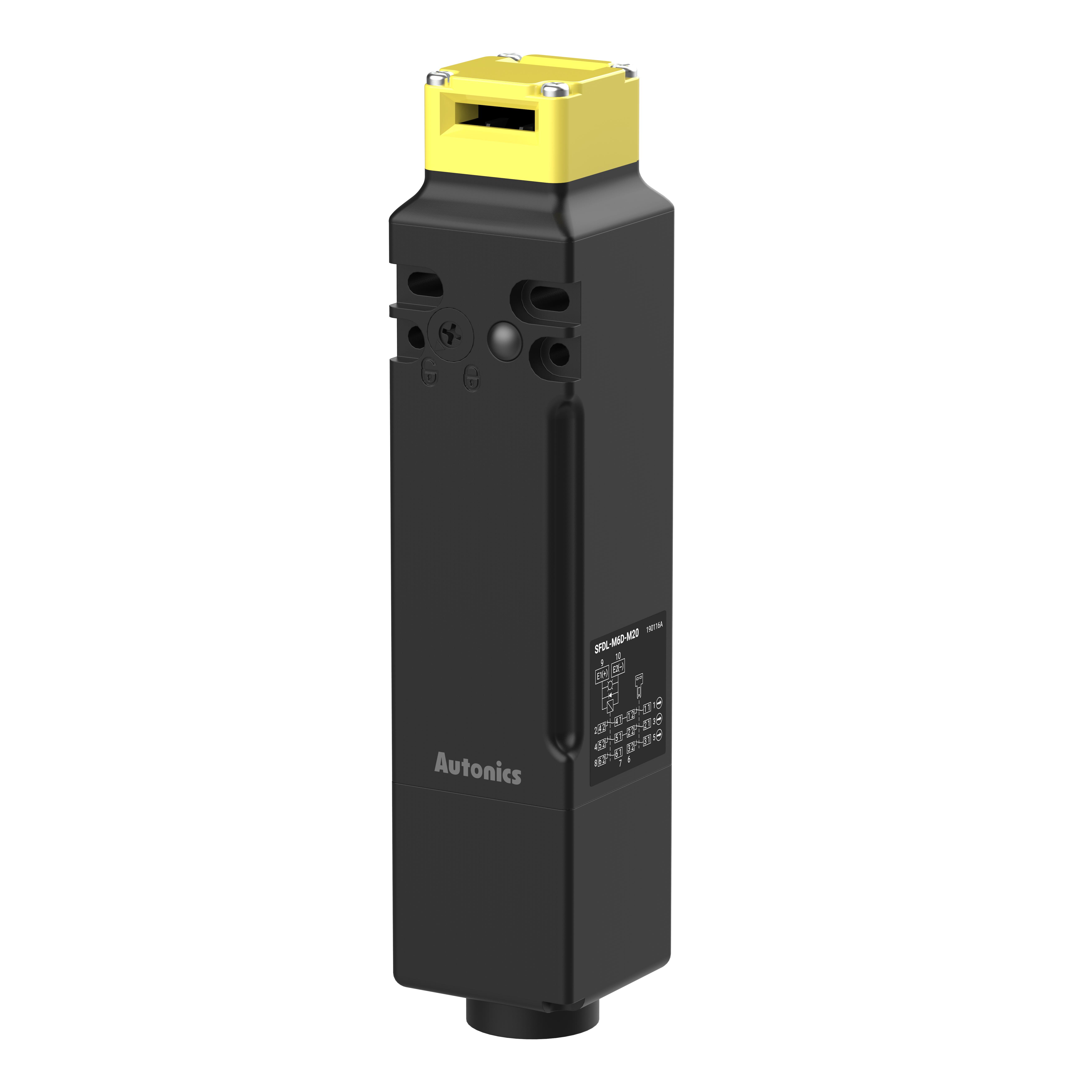

SFDL-MA-M20K
ActiveAMERICAFA INC.
INTERLOCK SOLENOID RELEASE 4PST
Deep-Dive with AI
Search across all available documentation for this part.
SFDL-MA-M20K
ActiveAMERICAFA INC.
INTERLOCK SOLENOID RELEASE 4PST
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SFDL-MA-M20K |
|---|---|
| Actuator Type | Panel Disconnect |
| Approval Agency | CCC, cULus, CE, TUV |
| Circuit | 4PST-2NC/2NO |
| Current Rating (Amps) | 1 A, 220 mA |
| Features | Manual Override |
| Holding Force | 8 kgf |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Operating Temperature [Max] [custom] | 55 °C |
| Operating Temperature [Min] [custom] | -10 °C |
| Termination Style | Screw Terminal |
| Type | Solenoid Release |
| Voltage - Supply | 24 VDC |
| Voltage Rating | 120 VAC, 125 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 140.00 | |
Description
General part information
SFDL-MA-M20K
INTERLOCK SOLENOID RELEASE 4PST
Documents
Technical documentation and resources
No documents available
