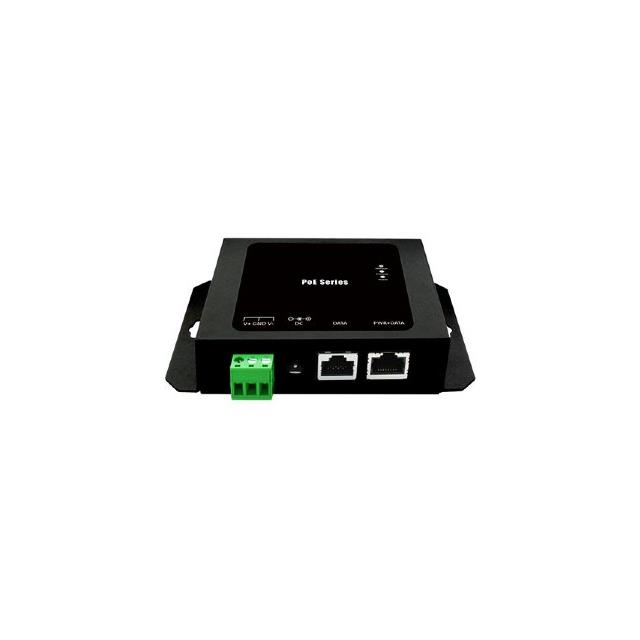

POE-DGT-ZW
ActiveCERiO Corporation
DC12-56V TO 30W POE ADAPTER
Deep-Dive with AI
Search across all available documentation for this part.
POE-DGT-ZW
ActiveCERiO Corporation
DC12-56V TO 30W POE ADAPTER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | POE-DGT-ZW |
|---|---|
| Approval Agency | FCC, CE |
| Compliance | IEEE802.3af, IEEE802.3u, IEEE802.3ab, IEEE802.3, IEEE802.3at |
| Data Rate | 10 Mbps, 1000 Mbps, 100 Mbps |
| Features | SCP, OVP |
| Input Connector | Terminal Block, RJ45 |
| Input Connector | 2.5 mm |
| Mounting Type | Desktop, Wall Mount |
| Number of Ports | 2 |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) - Per Port | 30 W |
| Size / Dimension [x] | 5.12 " |
| Size / Dimension [x] | 130 mm |
| Size / Dimension [y] | 3.23 " |
| Size / Dimension [y] | 82 mm |
| Size / Dimension [z] | 1.06 in |
| Size / Dimension [z] | 27 mm |
| Type | Active Injector |
| Voltage - Input [Max] | 57 V |
| Voltage - Input [Min] | 12 V |
| Voltage - Output | 56 V |
| Weight | 235 g |
| Weight | 0.518 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 53.00 | |
| 24 | $ 51.94 | |||
| 48 | $ 50.90 | |||
| 96 | $ 49.88 | |||
| 192 | $ 48.89 | |||
| 240 | $ 46.44 | |||
| 480 | $ 44.12 | |||
Description
General part information
POE-DGT-ZW
56V Power Over Ethernet (POE) 2 Port Active Injector 10/100/1000 Mbps Data Rate
