5001612
ActiveGES High Voltage
KS-MCS605 9.5-6.5
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5001612
ActiveGES High Voltage
KS-MCS605 9.5-6.5
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 5001612 |
|---|---|
| Cable Opening [diameter] | 0.063 in |
| Cable Opening [diameter] | 1.6 mm |
| Color | Silver |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Gold |
| Current Rating (Amps) | 4.5 A |
| Features | High Voltage Connector, Strain Relief |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions | 6 |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Brass |
| Shielding | Shielded |
| Termination | Solder, Crimp |
| Voltage Rating | 5000 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 87.43 | |
| 10 | $ 83.06 | |||
| 25 | $ 78.69 | |||
| 50 | $ 74.32 | |||
Description
General part information
5001612

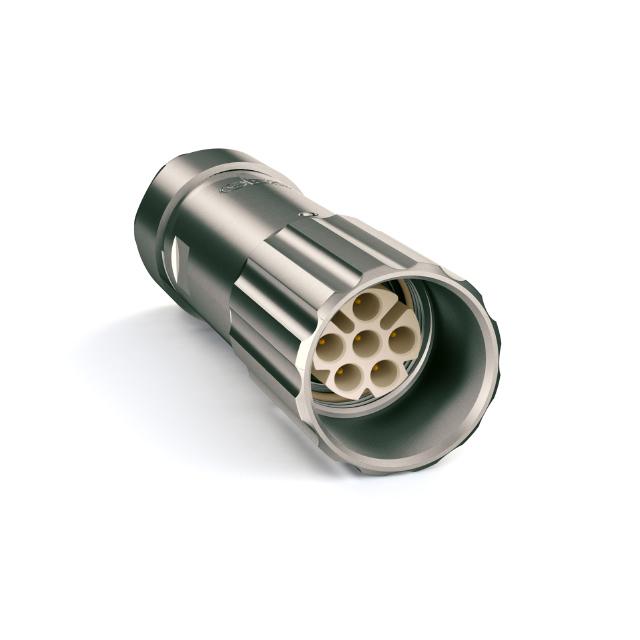

6 Position Circular Connector Plug, Male Pins Crimp, Solder
