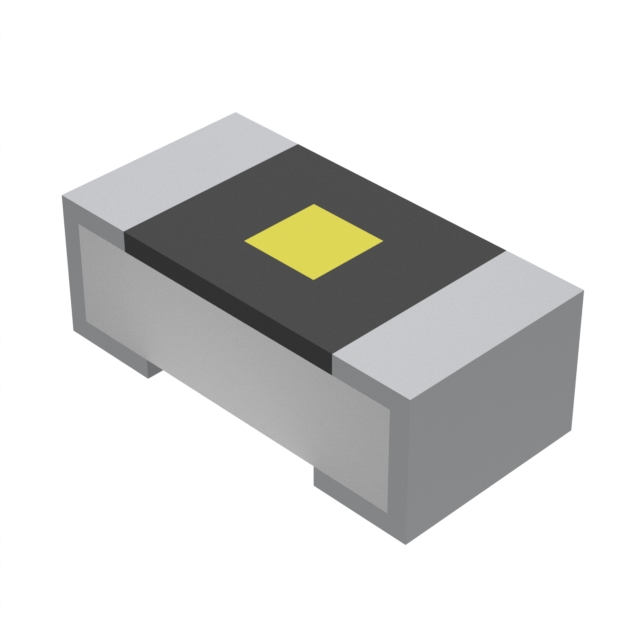

ESR10EZPF4R32
Rohm Semiconductor
RES 4.32 OHM 1% 1/2W 0805
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ESR10EZPF4R32
Rohm Semiconductor
RES 4.32 OHM 1% 1/2W 0805
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ESR10EZPF4R32 |
|---|---|
| Composition | Thick Film |
| Features | Automotive AEC-Q200, Pulse Withstanding |
| Height - Seated (Max) [Max] | 0.026 in |
| Height - Seated (Max) [Max] | 0.65 mm |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 0805 |
| Power (Watts) | 0.5 W |
| Power (Watts) | 0.5 W |
| Ratings | AEC-Q200 |
| Resistance | 4.32 Ohms |
| Size / Dimension [x] | 2 mm |
| Size / Dimension [x] | 0.079 in |
| Size / Dimension [y] | 0.049 in |
| Size / Dimension [y] | 1.25 mm |
| Supplier Device Package | 0805 |
| Temperature Coefficient | 100 ppm/°C |
| Tolerance | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.19 | |
| 10 | $ 0.10 | |||
| 50 | $ 0.07 | |||
| 100 | $ 0.06 | |||
| 500 | $ 0.04 | |||
| 1000 | $ 0.04 | |||
| Digi-Reel® | 1 | $ 0.19 | ||
| 10 | $ 0.10 | |||
| 50 | $ 0.07 | |||
| 100 | $ 0.06 | |||
| 500 | $ 0.04 | |||
| 1000 | $ 0.04 | |||
| Tape & Reel (TR) | 5000 | $ 0.03 | ||
| 10000 | $ 0.03 | |||
| 15000 | $ 0.02 | |||
| 25000 | $ 0.02 | |||
| 35000 | $ 0.02 | |||
| 50000 | $ 0.02 | |||
| 125000 | $ 0.02 | |||
| 250000 | $ 0.02 | |||
| 500000 | $ 0.02 | |||
Description
General part information
ESR10EZPF4R32
4.32 Ohms ±1% 0.5W, 1/2W Chip Resistor 0805 (2012 Metric) Automotive AEC-Q200, Pulse Withstanding Thick Film
