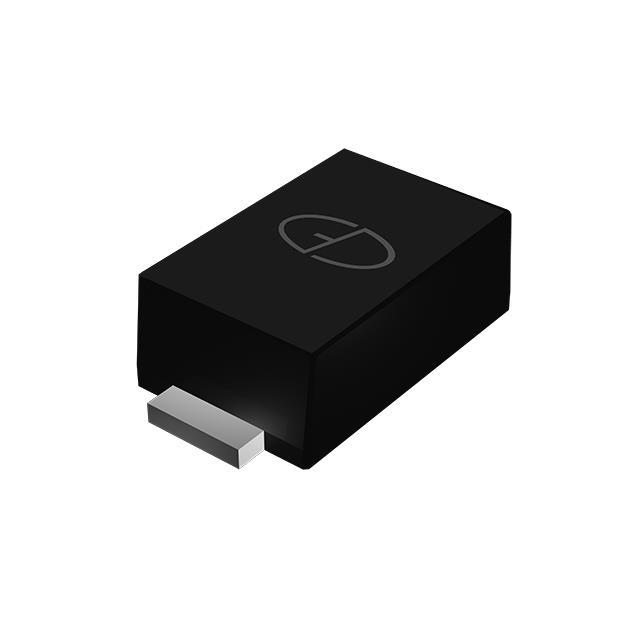

GS1N5711W
ActiveGood-Ark Semiconductor
DIODE, SCHOTTKY, 15MA, 70V, SOD-
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GS1N5711W
ActiveGood-Ark Semiconductor
DIODE, SCHOTTKY, 15MA, 70V, SOD-
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GS1N5711W |
|---|---|
| Capacitance @ Vr, F | 2 pF |
| Current - Average Rectified (Io) | 15 mA |
| Current - Reverse Leakage @ Vr | 200 µA |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction | 125 °C |
| Package / Case | SOD-123 |
| Reverse Recovery Time (trr) | 1 ns |
| Speed | Any Speed |
| Speed | 200 mA |
| Supplier Device Package | SOD-123 |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) [Max] | 70 V |
| Voltage - Forward (Vf) (Max) @ If | 1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.33 | |
| 10 | $ 0.23 | |||
| 100 | $ 0.11 | |||
| 500 | $ 0.09 | |||
| 1000 | $ 0.06 | |||
| Digi-Reel® | 1 | $ 0.27 | ||
| 10 | $ 0.16 | |||
| 100 | $ 0.10 | |||
| 500 | $ 0.07 | |||
| 1000 | $ 0.07 | |||
| Tape & Reel (TR) | 3000 | $ 0.06 | ||
| 6000 | $ 0.05 | |||
| 9000 | $ 0.04 | |||
| 30000 | $ 0.04 | |||
| 75000 | $ 0.04 | |||
| 150000 | $ 0.03 | |||
Description
General part information
GS1N5711W
Diode 70 V 15mA Surface Mount SOD-123
