A884GSC
ActiveHoffman Enclosures, Inc.
BOX STL GRAY/NAT 7.99"L X 7.99"W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A884GSC
ActiveHoffman Enclosures, Inc.
BOX STL GRAY/NAT 7.99"L X 7.99"W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | A884GSC |
|---|---|
| Area (L x W) | 412 cm² |
| Area (L x W) | 63.9 in² |
| Color | Gray, Natural |
| Container Type | Box |
| Design | Cover Included |
| Features | Sealing Gasket |
| Height [z] | 4.016 in |
| Height [z] | 102 mm |
| Material | Metal, Steel |
| Ratings | UL-508A, IP66, NEMA 3, NEMA 12 |
| Size / Dimension [x] | 203 mm |
| Size / Dimension [x] | 7.992 in |
| Size / Dimension [y] | 7.992 in |
| Size / Dimension [y] | 203 mm |
| Thickness | 14 Gauge |
| Weight | 6.2 lbs |
| Weight | 2.8 kg |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 145.50 | |
| 5 | $ 142.90 | |||
| 10 | $ 140.30 | |||
| 25 | $ 138.23 | |||
| 50 | $ 135.11 | |||
Description
General part information
A884GSC

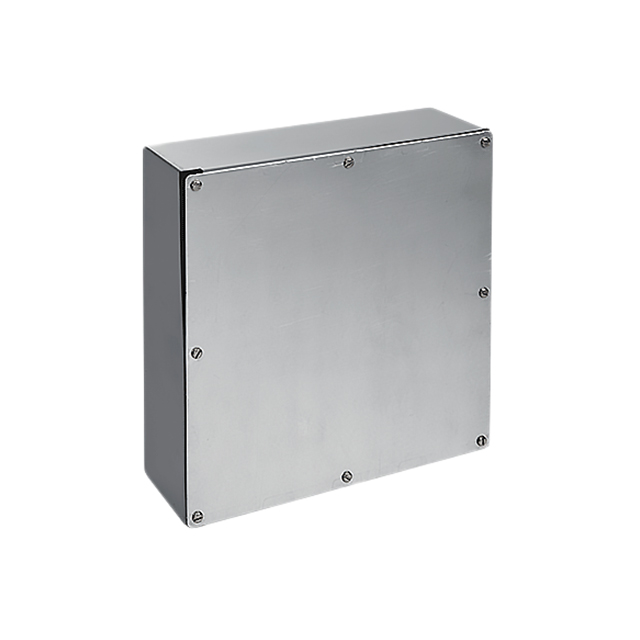

Box Metal, Steel Gray, Natural Cover Included 7.992" L x 7.992" W (203.00mm x 203.00mm) X 4.016" (102.00mm)
Documents
Technical documentation and resources
