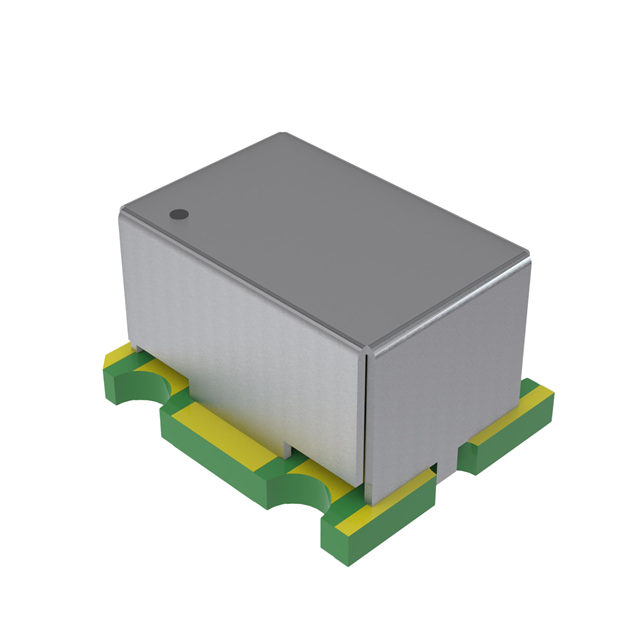

AB-005-SM
ActiveI.F. Engineering Corp and CrossPoint Technologies
BALUN, IN 50, OUT 100 BALANCED
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AB-005-SM
ActiveI.F. Engineering Corp and CrossPoint Technologies
BALUN, IN 50, OUT 100 BALANCED
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AB-005-SM |
|---|---|
| Frequency Range [Max] | 1.2 GHz |
| Frequency Range [Min] | 1 MHz |
| Impedance - Unbalanced/Balanced | 100 Ohm, 50 Ohm |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD, No Lead |
| Return Loss (Min) [Min] | 12.73 dB |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 127.00 | |
| 25 | $ 125.00 | |||
| 50 | $ 121.00 | |||
| 100 | $ 116.00 | |||
Description
General part information
AB-005-SM
RF Balun 1MHz ~ 1.2GHz 50 / 100Ohm 6-SMD, No Lead
