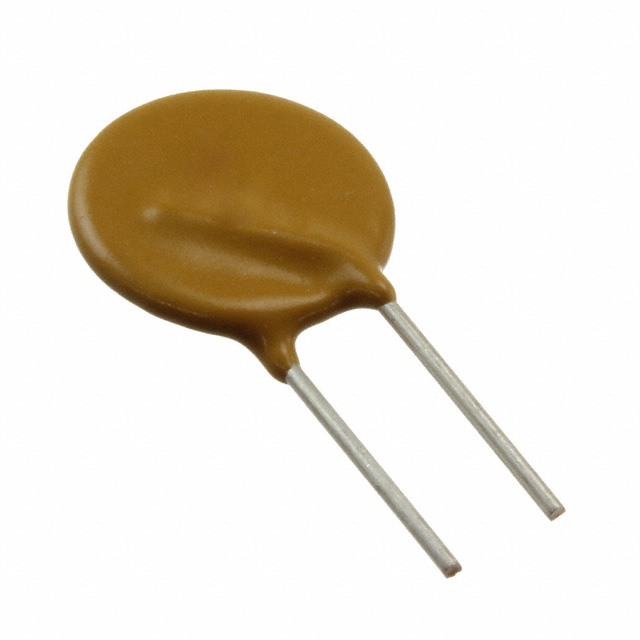

0ZRR0135FF1A
ActiveBEL MAGNETIC SOLUTIONS
PTC RESET FUSE 60V 1.35A RADIAL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
0ZRR0135FF1A
ActiveBEL MAGNETIC SOLUTIONS
PTC RESET FUSE 60V 1.35A RADIAL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 0ZRR0135FF1A |
|---|---|
| Current - Hold (Ih) (Max) [Max] | 1.35 A |
| Current - Max [Max] | 40 A |
| Current - Trip (It) | 2.7 A |
| Grade | Automotive |
| Height - Seated (Max) [Max] [z] | 19.6 mm |
| Height - Seated (Max) [Max] [z] | 0.772 in |
| Lead Spacing | 5.1 mm |
| Lead Spacing | 0.201 in |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Disc, Radial |
| Qualification | AEC-Q200 |
| Resistance - Initial (Ri) (Min) [Min] | 120 mOhms |
| Resistance - Post Trip (R1) (Max) [Max] | 300 mOhms |
| Size / Dimension [custom] | 0.122 in |
| Size / Dimension [custom] | 3.1 mm |
| Size / Dimension [diameter] | 14.5 mm |
| Size / Dimension [diameter] | 0.571 inches |
| Time to Trip | 9.6 s |
| Type | Polymeric |
| Voltage - Max [Max] | 60 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.35 | |
| 5 | $ 0.30 | |||
| 10 | $ 0.27 | |||
| 50 | $ 0.23 | |||
| 100 | $ 0.21 | |||
| 250 | $ 0.19 | |||
| 500 | $ 0.18 | |||
| 1000 | $ 0.17 | |||
Description
General part information
0ZRR0135FF1A
Polymeric PTC Resettable Fuse 60V 1.35 A Ih Through Hole Radial, Disc
Documents
Technical documentation and resources
