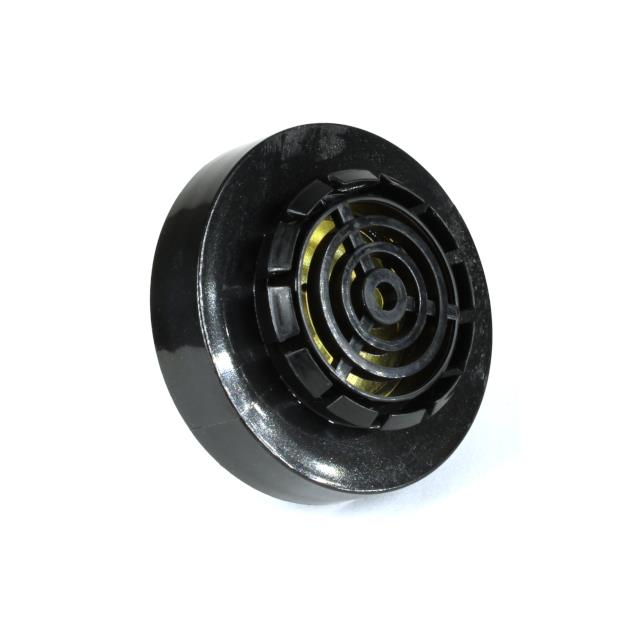

SNP428FR
ActiveMallory Sonalert Products Inc.
AUDIO INDICATOR PIEZO 4VDC 28VDC 3MA 52DBA PANEL MOUNT BULK
Deep-Dive with AI
Search across all available documentation for this part.
SNP428FR
ActiveMallory Sonalert Products Inc.
AUDIO INDICATOR PIEZO 4VDC 28VDC 3MA 52DBA PANEL MOUNT BULK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SNP428FR |
|---|---|
| Current - Supply [Max] | 3 mA |
| Current - Supply [Min] | 0.5 mA |
| Driver Circuitry | Internally Driven, Indicator |
| Frequency | 2.9 kHz |
| Height - Seated (Max) [Max] | 23.03 mm |
| Height - Seated (Max) [Max] | 0.907 in |
| Input Type | DC |
| Operating Mode | Single Tone |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | -30 ░C |
| Port Location | Top |
| Size / Dimension [diameter] | 41.66 mm |
| Size / Dimension [diameter] | 1.64 in |
| Sound Pressure Level (SPL) | 52 dB |
| Technology | Piezo |
| Termination | 0.125 " |
| Termination | Quick Connect Tab, Screw Terminal |
| Termination | 3.2 mm |
| Voltage Range [Max] | 28 VDC |
| Voltage Range [Min] | 4 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 35.13 | |
Description
General part information
SNP428FR
Buzzers Indicator, Internally Driven Piezo 0.5 ~ 3mA 2.9kHz 52dB @ 4V, 61cm Panel Mount Screw Terminal, Quick Connect Tab - 0.125" (3.20mm)
