Technical Specifications
Parameters and characteristics for this part
| Specification | 213025 |
|---|---|
| Cable Length | 78.74 in |
| Cable Length | 2 m |
| Connection Method | Cable |
| Ingress Protection | IP67 |
| Light Source | Red Laser Diode |
| Light Source | 630 nm |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | -25 °C |
| Output Configuration | PNP-NO |
| Sensing Distance | 50 mm |
| Sensing Distance | 1.969 in |
| Sensing Method | Diffuse |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 144.20 | |
Description
General part information
213025

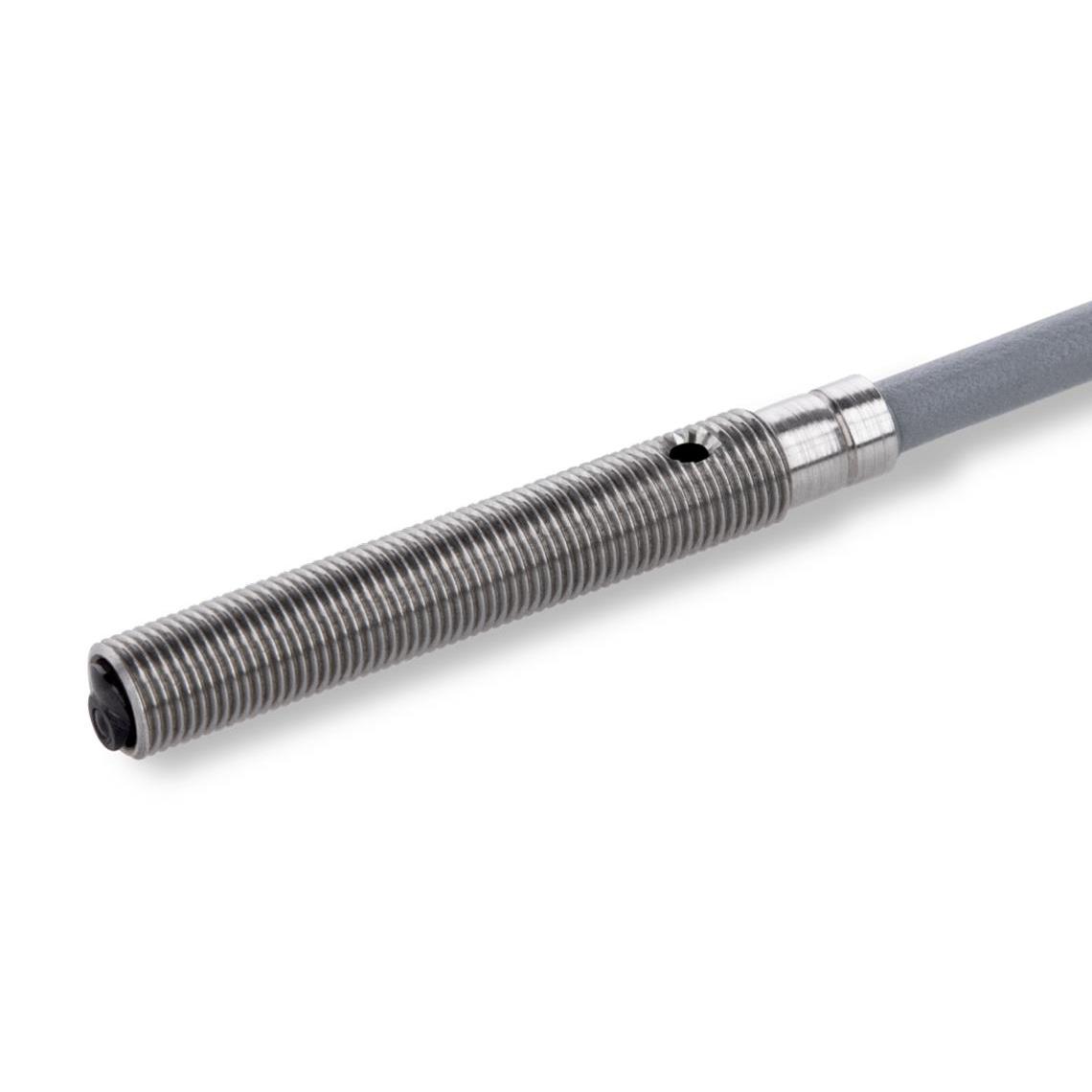

Diffuse Optical Sensor 1.969" (50mm) PNP-NO
