800012SS
ActiveAccurate Screw Machine

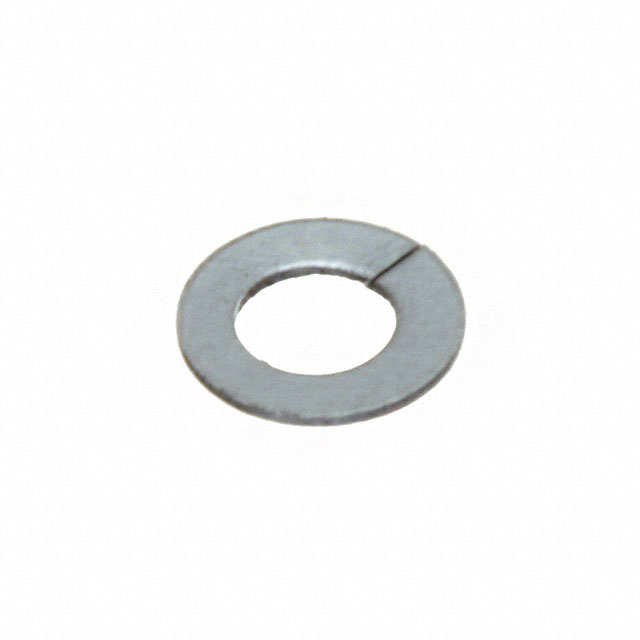

WASHER, PANEL SCREW RETAINER, 10
Deep-Dive with AI
Search across all available documentation for this part.
800012SS
ActiveAccurate Screw Machine
WASHER, PANEL SCREW RETAINER, 10
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 800012SS |
|---|---|
| Diameter - Inside [diameter] | 4.22 mm |
| Diameter - Inside [diameter] | 0.166 in |
| Diameter - Outside [diameter] | 0.312 in |
| Diameter - Outside [diameter] | 7.92 mm |
| Diameter - Outside [diameter] | 0.3125 in |
| Material | Stainless Steel |
| Thickness | 0.012 in |
| Thickness | 0.31 mm |
| Thread/Screw/Hole Size | #10-32 |
| Type | Flat, Retaining |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.55 | |
Description
General part information
800012SS
#10-32 Flat, Retaining Washer 0.012" (0.31mm) Thick Stainless Steel
Documents
Technical documentation and resources
No documents available
