HA4
ActiveAmphenol TPC Wire & Cable

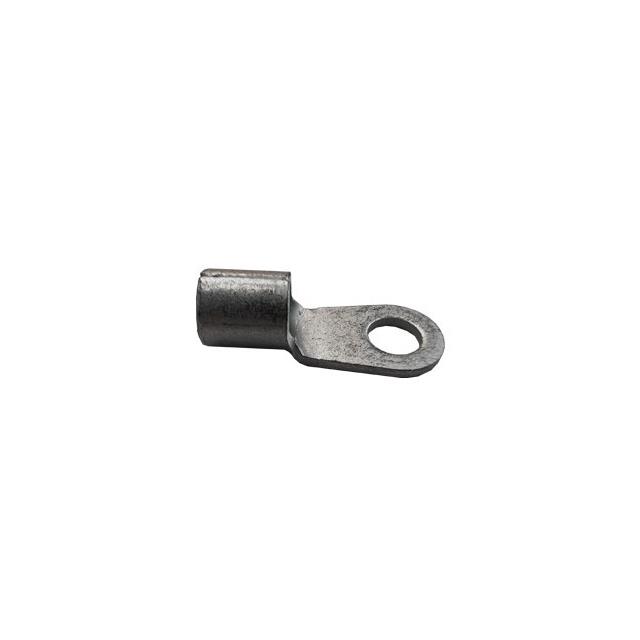

CONN RING 22-16 AWG #8
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HA4 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Electrolytic Copper |
| Features | Heavy Duty, Brazed Seam |
| Insulation | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 8 Stud |
| Terminal Type | Circular |
| Termination | Crimp |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 17.5 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1000 | $ 0.08 | |
| 2000 | $ 0.07 | |||
| 4000 | $ 0.07 | |||
Description
General part information
HA4
Ring Terminal Connector 8 Stud Circular 18-22 AWG Crimp
