CPEX3231H-2R0MC
ActiveCODACA
THT HIGH CURRENT POWER INDUCTOR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CPEX3231H-2R0MC
ActiveCODACA
THT HIGH CURRENT POWER INDUCTOR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CPEX3231H-2R0MC |
|---|---|
| Current - Saturation (Isat) | 290 A |
| Current Rating (Amps) | 84 A |
| DC Resistance (DCR) [Max] | 0.47 mOhm |
| Height - Seated (Max) [Max] [z] | 30.5 mm |
| Height - Seated (Max) [Max] [z] | 1.201 in |
| Inductance | 2 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Metal Composite |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Vertical, 2 PC Pin |
| Shielding | Shielded |
| Size / Dimension [x] | 1.268 in |
| Size / Dimension [x] | 32.2 mm |
| Size / Dimension [y] | 31.5 mm |
| Size / Dimension [y] | 1.24 in |
| Tolerance | 20 % |
| Type | Wirewound |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 23.71 | |
| 10 | $ 18.37 | |||
| 25 | $ 16.58 | |||
| 40 | $ 15.73 | |||
| 80 | $ 14.55 | |||
| 230 | $ 14.38 | |||
Description
General part information
CPEX3231H-2R0MC

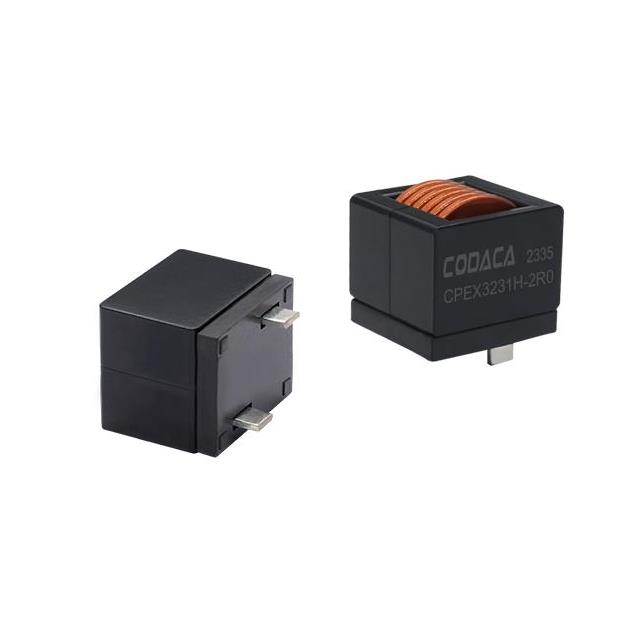

2 µH Shielded Wirewound Inductor 84 A 0.47mOhm Max Vertical, 2 PC Pin
