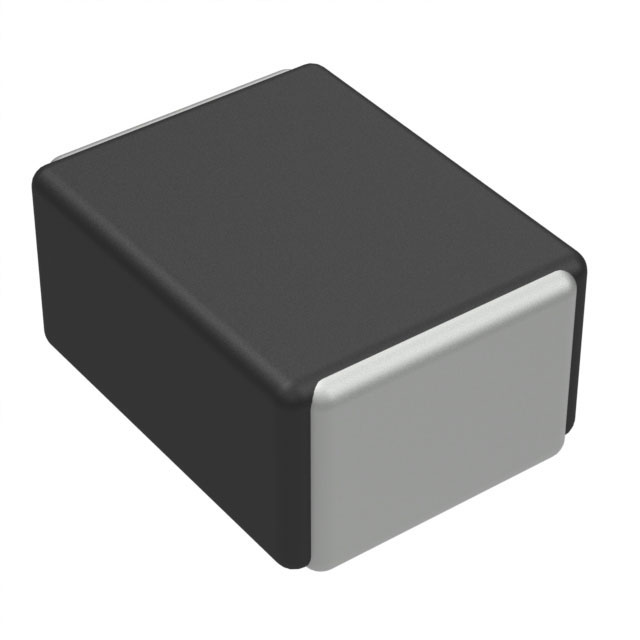

MGV201610R24M-10
ActiveLaird Technologies - Thermal Materials
FIXED IND 240NH 5A 21 MOHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MGV201610R24M-10
ActiveLaird Technologies - Thermal Materials
FIXED IND 240NH 5A 21 MOHM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MGV201610R24M-10 |
|---|---|
| Current - Saturation (Isat) | 5.6 A |
| Current Rating (Amps) | 5 A |
| DC Resistance (DCR) [Max] | 21 mOhm |
| Height - Seated (Max) [Max] | 0.039 " |
| Height - Seated (Max) [Max] | 1 mm |
| Inductance | 240 nH |
| Inductance Frequency - Test | 1 MHz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 0806 (2016 Metric) |
| Shielding | Shielded |
| Size / Dimension [x] | 2 mm |
| Size / Dimension [x] | 0.079 in |
| Size / Dimension [y] | 0.063 in |
| Size / Dimension [y] | 1.6 mm |
| Tolerance | 20 % |
| Type | Molded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.33 | |
| 10 | $ 0.26 | |||
| 25 | $ 0.23 | |||
| 50 | $ 0.22 | |||
| 100 | $ 0.20 | |||
| 250 | $ 0.18 | |||
| 500 | $ 0.17 | |||
| 1000 | $ 0.16 | |||
| Digi-Reel® | 1 | $ 0.33 | ||
| 10 | $ 0.26 | |||
| 25 | $ 0.23 | |||
| 50 | $ 0.22 | |||
| 100 | $ 0.20 | |||
| 250 | $ 0.18 | |||
| 500 | $ 0.17 | |||
| 1000 | $ 0.16 | |||
| Tape & Reel (TR) | 3000 | $ 0.07 | ||
| 6000 | $ 0.07 | |||
| 9000 | $ 0.06 | |||
Description
General part information
MGV201610R24M-10
240 nH Shielded Molded Inductor 5 A 21mOhm Max 0806 (2016 Metric)
