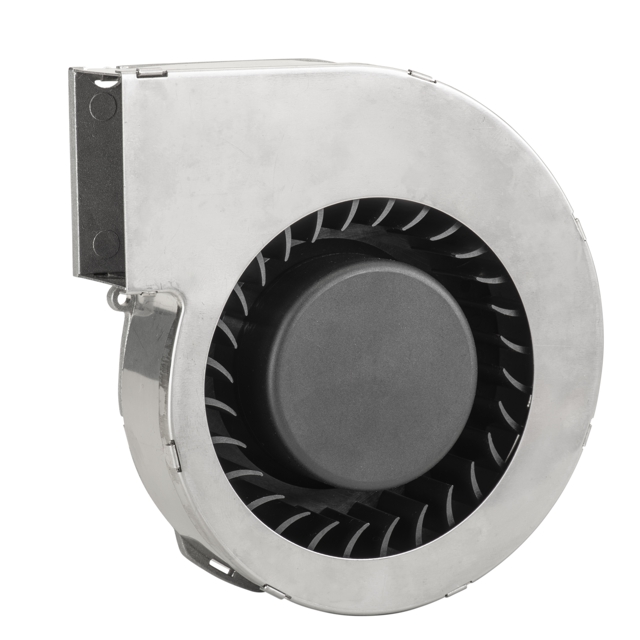

P1232X24BALB2A-28
ActivePelonis Technologies
FAN BLOWER 120X32MM 24VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
P1232X24BALB2A-28
ActivePelonis Technologies
FAN BLOWER 120X32MM 24VDC WIRE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | P1232X24BALB2A-28 |
|---|---|
| Air Flow | 37.9 CFM |
| Air Flow | 1.07 mł/min |
| Approval Agency | cUL, UL, CE |
| Bearing Type | Ball |
| Fan Type | Blower |
| Features | Polarity Protection, Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) |
| Noise | 58.5 dB |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 16.2 W |
| RPM | 4600 RPM |
| Size / Dimension [x] | 120 mm |
| Size / Dimension [y] | 120 mm |
| Static Pressure | 1.59 in H2O |
| Static Pressure | 396 Pa |
| Termination | 3 Wire Leads |
| Voltage - Rated | 24 VDC |
| Width [y] | 32 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 47.11 | |
| 10 | $ 43.97 | |||
| 25 | $ 42.55 | |||
| 50 | $ 41.22 | |||
| 100 | $ 39.97 | |||
Description
General part information
P1232X24BALB2A-28
Fan Blower 24VDC Rectangular/Round - 120mm L x 120mm H Ball 37.9 CFM (1.07m³/min) 3 Wire Leads
