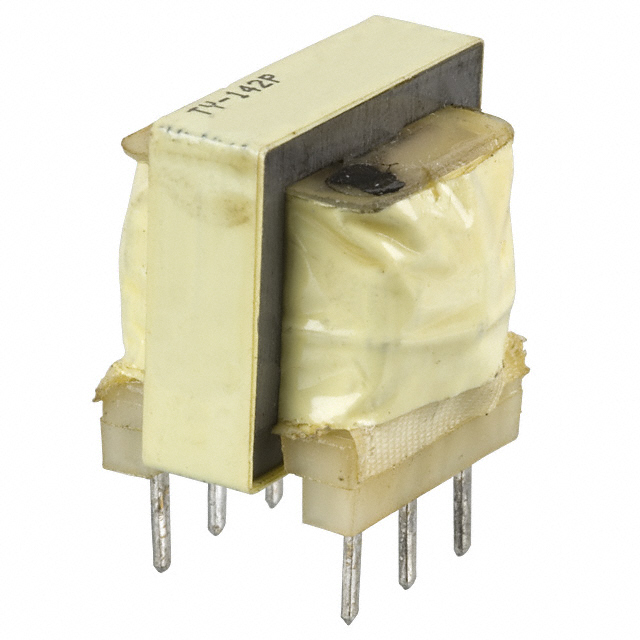

TY-142P-B
ActiveTRIAD MAGNETICS
AUDIO XFMR 10KCT / 2KCT TH
Deep-Dive with AI
Search across all available documentation for this part.
TY-142P-B
ActiveTRIAD MAGNETICS
AUDIO XFMR 10KCT / 2KCT TH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TY-142P-B |
|---|---|
| DC Resistance (DCR) - Primary | 750 Ohm |
| DC Resistance (DCR) - Secondary [custom] | 217 Ohm |
| Frequency Range [Max] | 15 kHz |
| Frequency Range [Min] | 200 Hz |
| Frequency Response | 2 dB |
| Impedance - Primary (Ohms) | 10kCT |
| Impedance - Secondary (Ohms) | 2kCT |
| Insertion Loss | 1.5 dB |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Return Loss | 26 dB |
| Size / Dimension [x] | 20.62 mm |
| Size / Dimension [x] | 0.812 in |
| Size / Dimension [y] | 0.7 in |
| Size / Dimension [y] | 17.78 mm |
| Termination Style | PC Pin |
| Transformer Type | Data/Voice Coupling |
| Turns Ratio - Primary:Secondary [custom] | 2.24 |
| Turns Ratio - Primary:Secondary [custom] | 1 |
| Voltage - Isolation | 1.5 kV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1200 | $ 3.25 | |
Description
General part information
TY-142P-B
10kCT Impedance Primary Ohms 2kCT Impedance Secondary Ohms 2.24:1 Audio Transformer 200Hz ~ 15kHz Through Hole
