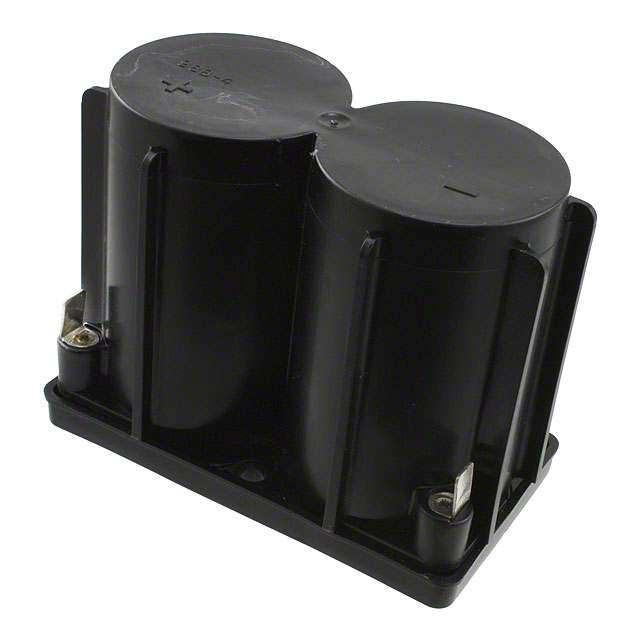

0859-0010
ActiveENERSYS
BATTERY LEAD ACID 4V 8AH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
0859-0010
ActiveENERSYS
BATTERY LEAD ACID 4V 8AH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 0859-0010 |
|---|---|
| Battery Chemistry | Sealed Lead Acid (SLA, VRLA) |
| Capacity | 8 Ah |
| Discharge Rate | 10 Hr |
| Shelf Life | 12 Months |
| Size / Dimension [x] | 3.81 in |
| Size / Dimension [x] | 96.8 mm |
| Size / Dimension [y] | 2.13 in |
| Size / Dimension [y] | 54.1 mm |
| Size / Dimension [z] | 4 in |
| Size / Dimension [z] | 101.6 mm |
| Termination Style | Spade, .250" (6.3mm) |
| Voltage - Rated | 4 V |
| Weight | 952.5 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 77.61 | |
| 24 | $ 64.35 | |||
| 72 | $ 56.05 | |||
| 120 | $ 53.07 | |||
Description
General part information
0859-0010
4 V Sealed Lead Acid (SLA, VRLA) Battery Rechargeable (Secondary) 8Ah
Documents
Technical documentation and resources
