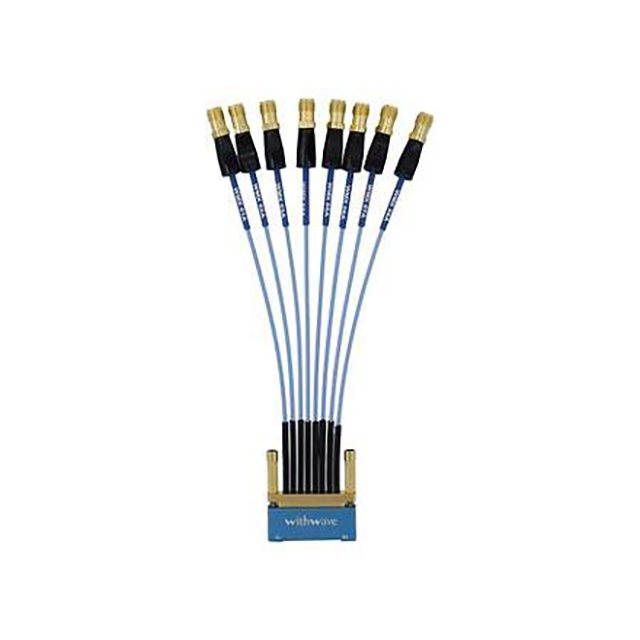

WMX50D-8A1-2F1-305-N-01-H
ActiveWITHWAVE CO LTD
CBL ASSY JACK 12.01"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | WMX50D-8A1-2F1-305-N-01-H |
|---|---|
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Connector | 2.4 mm |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | 0.047" Flexible Cable |
| Color | Blue |
| Frequency - Max [Max] | 50 GHz |
| Length | 305 mm |
| Length | 12.01 " |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Overall Impedance | 50 Ohms |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Case | 1 | $ 1358.60 | |
| 5 | $ 1317.84 | |||
| 10 | $ 1290.67 | |||
Description
General part information
WMX50D-8A1-2F1-305-N-01-H
Cable Assembly Coaxial 0.047" Flexible Cable 12.01" (305.00mm)
