LMS1585ACSX-ADJ
ObsoleteTexas Instruments
IC REG LIN POS ADJ 5A DDPAK
Deep-Dive with AI
Search across all available documentation for this part.
LMS1585ACSX-ADJ
ObsoleteTexas Instruments
IC REG LIN POS ADJ 5A DDPAK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LMS1585ACSX-ADJ |
|---|---|
| Current - Output | 5 A |
| Current - Quiescent (Iq) | 7 mA |
| Current - Supply (Max) [Max] | 13 mA |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | 0 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Package / Case | TO-263AA, D2PAK (3 Leads + Tab), TO-263-4 |
| Protection Features | Over Current, Over Temperature |
| PSRR | 72 dB |
| Supplier Device Package | TO-263 (DDPAK-3) |
| Voltage - Input (Max) [Max] | 13 V |
| Voltage - Output (Max) [Max] | 11.6 V |
| Voltage - Output (Min/Fixed) | 1.25 V |
| Voltage Dropout (Max) [Max] | 1.4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
LMS1585ACSX-ADJ

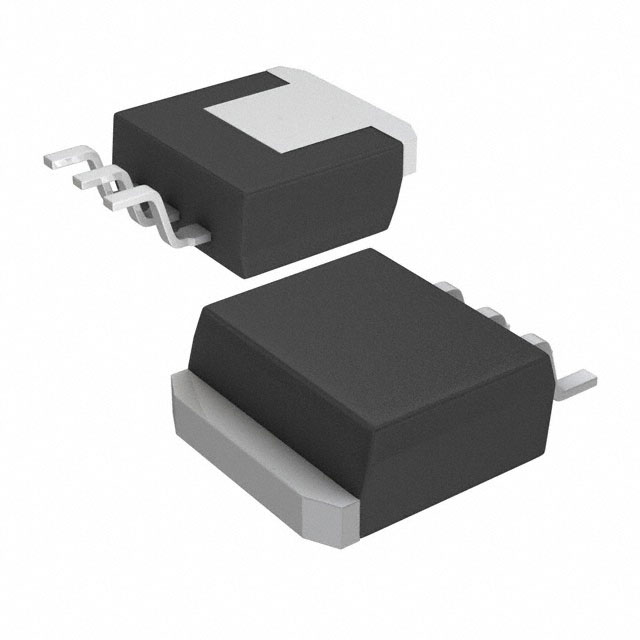

Linear Voltage Regulator IC Positive Adjustable 1 Output 5A TO-263 (DDPAK-3)
