IRFHM8363TR2PBF
ObsoleteInfineon Technologies
MOSFET 2N-CH 30V 11A 8PQFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IRFHM8363TR2PBF |
|---|---|
| Configuration | 2 N-Channel (Dual) |
| Current - Continuous Drain (Id) @ 25°C | 11 A |
| Drain to Source Voltage (Vdss) | 30 V |
| FET Feature | Logic Level Gate |
| Gate Charge (Qg) (Max) @ Vgs | 15 nC |
| Input Capacitance (Ciss) (Max) @ Vds | 1165 pF |
| Mounting Type | Surface Mount |

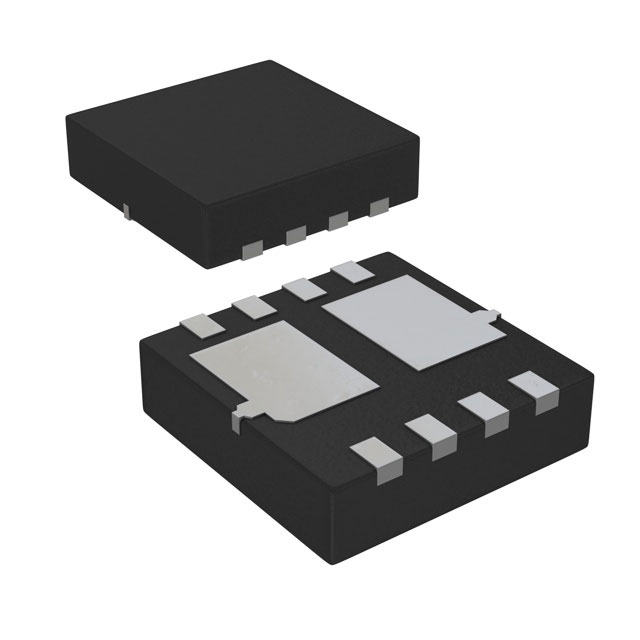

| Package / Case | 8-PowerVDFN |
| Power - Max [Max] | 2.7 W |
| Rds On (Max) @ Id, Vgs | 14.9 mOhm |
| Supplier Device Package | 8-PQFN-Dual |
| Supplier Device Package [x] | 3.3 |
| Supplier Device Package [y] | 3.3 |
| Technology | MOSFET (Metal Oxide) |
| Vgs(th) (Max) @ Id | 2.35 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
IRFHM8363TR2PBF
Mosfet Array 30V 11A 2.7W Surface Mount 8-PQFN-Dual (3.3x3.3)
