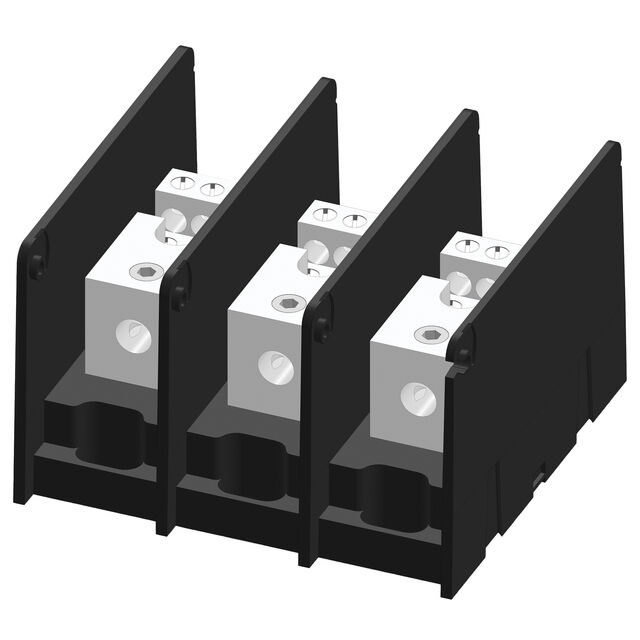

MPDB67403
ActiveMersen USA Newburyport-MA L.L.C.
POWER DISTRIBUTION BLOCK,OPEN ST
Deep-Dive with AI
Search across all available documentation for this part.
MPDB67403
ActiveMersen USA Newburyport-MA L.L.C.
POWER DISTRIBUTION BLOCK,OPEN ST
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MPDB67403 |
|---|---|
| Current Rating (Amps) | 380 A |
| Line Side Connection Type | Screw Connection |
| Line Side Connections Per Pole | 1 |
| Line Side Wire/Stud Size | #4CU, #4AL |
| Line Side Wire/Stud Size | 500 kcmil |
| Load Side Connection Type | Screw Connection |
| Load Side Connections Per Pole | 1 |
| Load Side Wire/Stud Size | 500 MCM (kcmil) |
| Load Side Wire/Stud Size | #4CU/AL |
| Number of Poles | 3 |
| Type | Power Stud Terminal Block |
| Voltage - Rated | 1000 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 167.81 | |
| 6 | $ 158.98 | |||
| 10 | $ 150.15 | |||
| 50 | $ 123.65 | |||
Description
General part information
MPDB67403
3 Pole Power Stud Terminal Block 380 A 1000 V
Documents
Technical documentation and resources
No documents available
