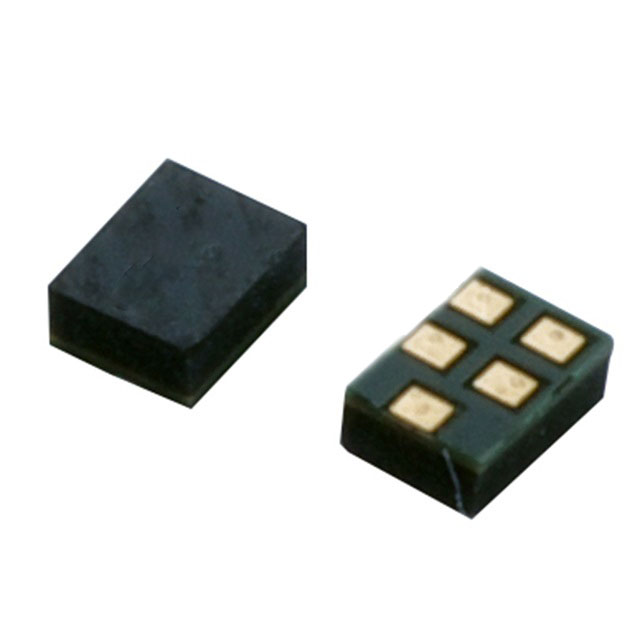

RSF-1842.500-75000-1109-TR-NS3
ActiveRaltron Electronics
FILTER SAW 1.8425GHZ 5SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RSF-1842.500-75000-1109-TR-NS3
ActiveRaltron Electronics
FILTER SAW 1.8425GHZ 5SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RSF-1842.500-75000-1109-TR-NS3 |
|---|---|
| Bandwidth | 75 MHz |
| Frequency - Center | 1842.5 MHz |
| Height (Max) [Max] | 0.021 in |
| Height (Max) [Max] | 0.55 mm |
| Insertion Loss | 1.6 dB |
| Mounting Type | Surface Mount |
| Package / Case | 5-SMD, No Lead |
| Size / Dimension [x] | 0.043 in |
| Size / Dimension [x] | 1.1 mm |
| Size / Dimension [y] | 0.9 mm |
| Size / Dimension [y] | 0.035 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.30 | |
| 10 | $ 0.95 | |||
| 25 | $ 0.93 | |||
| 50 | $ 0.91 | |||
| 100 | $ 0.83 | |||
| 250 | $ 0.80 | |||
| 500 | $ 0.69 | |||
| 1000 | $ 0.65 | |||
| Digi-Reel® | 1 | $ 1.30 | ||
| 10 | $ 0.95 | |||
| 25 | $ 0.93 | |||
| 50 | $ 0.91 | |||
| 100 | $ 0.83 | |||
| 250 | $ 0.80 | |||
| 500 | $ 0.69 | |||
| 1000 | $ 0.65 | |||
| Tape & Reel (TR) | 3000 | $ 0.32 | ||
| 6000 | $ 0.30 | |||
| 15000 | $ 0.28 | |||
| 30000 | $ 0.28 | |||
Description
General part information
RSF-1842.500-75000-1109-TR-NS3
1.8425GHz Frequency RF SAW Filter (Surface Acoustic Wave) 1.6dB 75MHz Bandwidth 5-SMD, No Lead
Documents
Technical documentation and resources
