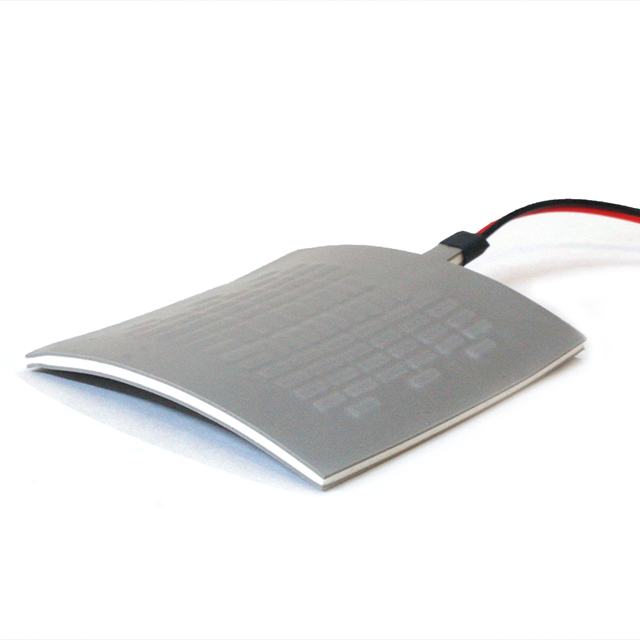

AL-TEM ES-02
ActiveASAHI RUBBER INC.
FLEXIBLE PELTIER DEVICE,THERMO E
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AL-TEM ES-02 |
|---|---|
| Current - Max [Max] | 3.99 A |
| Delta Tmax @ Th | 52.1 °C |
| Features | Flexible, Lead Wires |
| Height [z] | 2.15 mm |
| Number of Stages | 1 |
| Operating Temperature | 212 °F |
| Qmax @ Th | 19.5 W |
| Resistance | 2 Ohms |
| Size / Dimension [x] | 50 mm |
| Size / Dimension [y] | 50 mm |
| Voltage - Max [Max] | 11.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 239.76 | |
Description
General part information
AL-TEM ES-02
Peltier Module 19.5W @ 50°C 3.99 A 100°C
