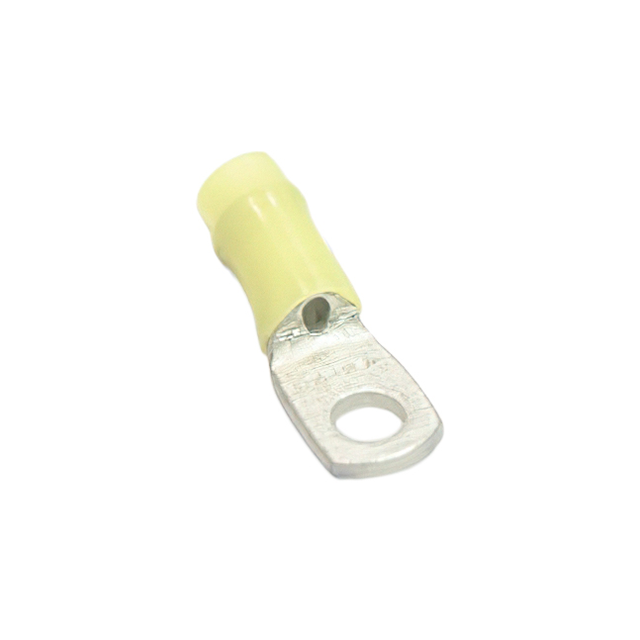

YAEV10
ActiveBURNDY
RING TERMINAL, #8-10 STUD, 12-10
Deep-Dive with AI
Search across all available documentation for this part.
YAEV10
ActiveBURNDY
RING TERMINAL, #8-10 STUD, 12-10
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | YAEV10 |
|---|---|
| Color | Yellow |
| Contact Finish | Tin |
| Contact Material | Copper |
| Insulation | Insulated |
| Length - Overall | 29.46 mm |
| Length - Overall | 1.16 in |
| Material - Insulation | Nylon, Polyamide (PA) |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 8 Stud, 10 Stud, 9 Stud |
| Terminal Type | Flat Sided |
| Termination | Crimp |
| Width - Outer Edges [y] | 7.11 mm |
| Width - Outer Edges [y] | 0.28 in |
| Wire Gauge [Max] | 12 AWG |
| Wire Gauge [Min] | 10 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
YAEV10
Ring Terminal Connector 8, 9, 10 Stud Flat Sided 10-12 AWG Crimp
Documents
Technical documentation and resources
No documents available
