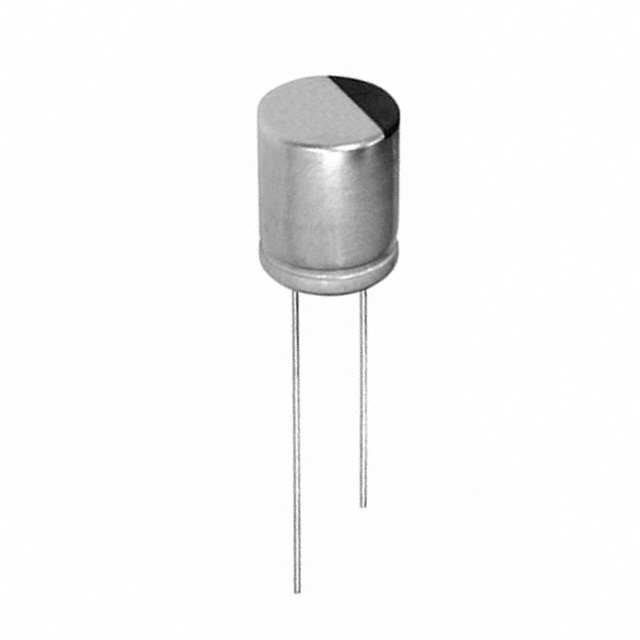

PLF0E821MCO6
ActiveNICHICON
POLYMER ALUMINIUM ELECTROLYTIC CAPACITOR, IP67, IP68, 820 ΜF, 2.5 V, RADIAL LEADED, 0.007 OHM
Deep-Dive with AI
Search across all available documentation for this part.
PLF0E821MCO6
ActiveNICHICON
POLYMER ALUMINIUM ELECTROLYTIC CAPACITOR, IP67, IP68, 820 ΜF, 2.5 V, RADIAL LEADED, 0.007 OHM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PLF0E821MCO6 |
|---|---|
| Applications | General Purpose |
| Capacitance | 820 µF |
| ESR (Equivalent Series Resistance) | 7 mOhms |
| Height - Seated (Max) [Max] | 0.354 in |
| Height - Seated (Max) [Max] | 9 mm |
| Lead Spacing | 3.5 mm |
| Lead Spacing | 0.138 in |
| Lifetime @ Temp. | 2000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Radial, Can |
| Ratings | AEC-Q200 |
| Ripple Current @ High Frequency | 5.2 A |
| Size / Dimension [diameter] | 0.315 " |
| Size / Dimension [diameter] | 8 mm |
| Tolerance | 20 % |
| Type | Polymer |
| Voltage - Rated | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
PLF0E821MCO6
820 µF 2.5 V Aluminum - Polymer Capacitors Radial, Can 7mOhm 2000 Hrs @ 105°C
