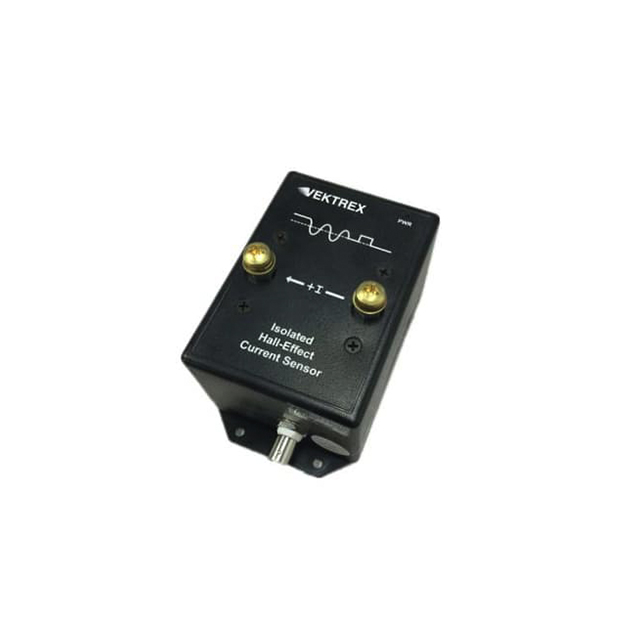

VCS80
ActiveVektrex
ISOLATED CURRENT SENSOR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VCS80
ActiveVektrex
ISOLATED CURRENT SENSOR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VCS80 |
|---|---|
| Accuracy | 0.5 % |
| Current - Sensing | 80 A |
| For Measuring | AC/DC |
| Frequency [Max] | 650 kHz |
| Frequency [Min] | DC |
| Mounting Type | Chassis Mount |
| Output | Voltage, Ratiometric |
| Package / Case | Module |
| Sensor Type | Hall Effect |
| Voltage - Supply [Max] | 18 V |
| Voltage - Supply [Min] | 9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 595.00 | |
Description
General part information
VCS80
Current Sensor 80A Channel Hall Effect Module
