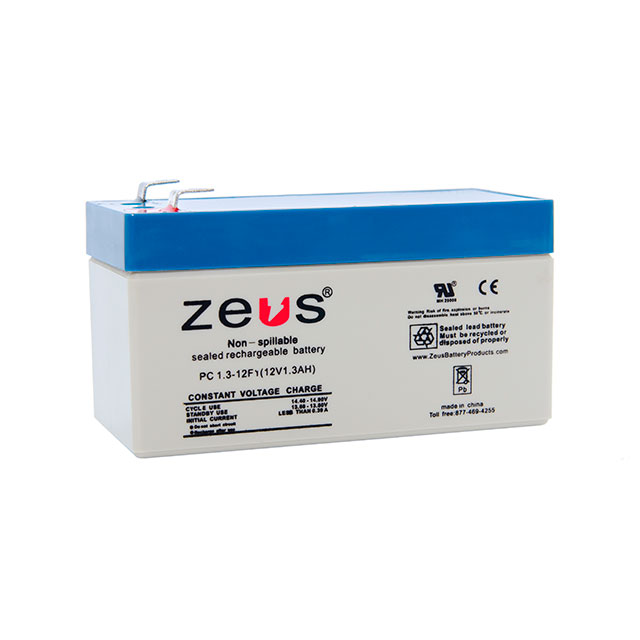

PC1.3-12F1
ObsoleteZEUS Battery Products
BATTERY LEAD ACID 12V 1.3AH
Deep-Dive with AI
Search across all available documentation for this part.
PC1.3-12F1
ObsoleteZEUS Battery Products
BATTERY LEAD ACID 12V 1.3AH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PC1.3-12F1 |
|---|---|
| Battery Chemistry | Sealed Lead Acid (SLA, VRLA) |
| Capacity | 1.3 Ah |
| Discharge Rate | 20 Hr |
| Shelf Life | 12 Months |
| Size / Dimension [x] | 3.82 in |
| Size / Dimension [x] | 97 mm |
| Size / Dimension [y] | 1.77 " |
| Size / Dimension [y] | 45 mm |
| Size / Dimension [z] | 52 mm |
| Size / Dimension [z] | 2.05 in |
| Standard Charge Current | 390 mA |
| Termination Style | Spade, .187" (4.7mm) |
| Voltage - Rated | 12 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
PC1.3-12F1
12 V Sealed Lead Acid (SLA, VRLA) Battery Rechargeable (Secondary) 1.3Ah
Documents
Technical documentation and resources
