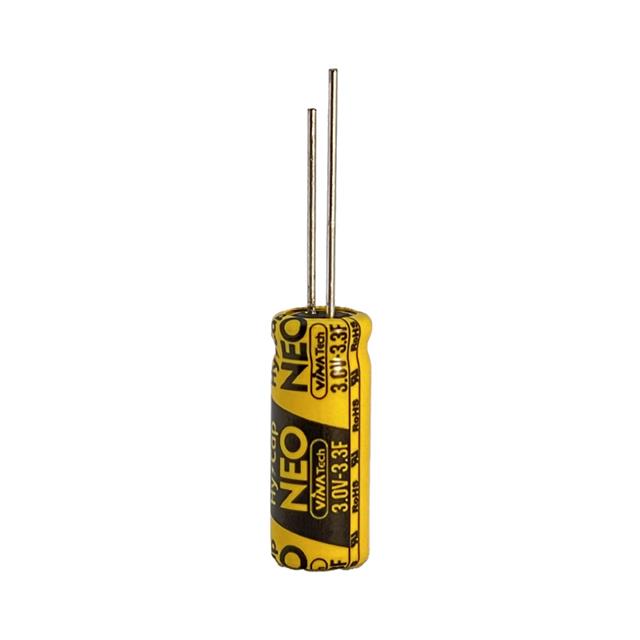

WEC3R0335QG
ActiveVINATech Co LTD
3.3F 3.0V 08*20 EDLC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
WEC3R0335QG
ActiveVINATech Co LTD
3.3F 3.0V 08*20 EDLC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | WEC3R0335QG |
|---|---|
| Capacitance | 3.3 F |
| ESR (Equivalent Series Resistance) | 85 mOhm |
| Height - Seated (Max) [Max] | 21.5 mm |
| Height - Seated (Max) [Max] | 0.846 in |
| Lead Spacing | 3.5 mm |
| Lead Spacing | 0.138 in |
| Lifetime @ Temp. | 1000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Radial, Can |
| Size / Dimension [diameter] | 0.315 " |
| Size / Dimension [diameter] | 8 mm |
| Termination | PC Pins |
| Tolerance [Max] | 30 % |
| Tolerance [Min] | -10 % |
| Voltage - Rated | 3 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 2.44 | |
| 10 | $ 1.57 | |||
| 50 | $ 1.23 | |||
| 100 | $ 1.12 | |||
| 500 | $ 0.93 | |||
| 1000 | $ 0.88 | |||
| 2500 | $ 0.82 | |||
| 5000 | $ 0.78 | |||
Description
General part information
WEC3R0335QG
3.3 F (EDLC) Supercapacitor 3 V Radial, Can 85mOhm @ 1kHz 1000 Hrs @ 65°C
