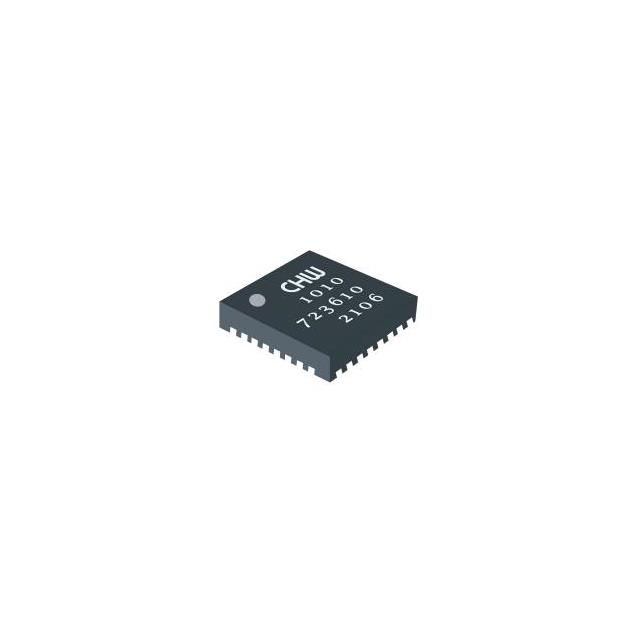

CHW1010-1-1.0
ActiveCoreHW Semiconductor Ltd
IC RF SWITCH SP16T 2.48GHZ 32QFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CHW1010-1-1.0
ActiveCoreHW Semiconductor Ltd
IC RF SWITCH SP16T 2.48GHZ 32QFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CHW1010-1-1.0 |
|---|---|
| Circuit | SP16T |
| Frequency Range [Max] | 2.48 GHz |
| Frequency Range [Min] | 2.402 GHz |
| Impedance | 50 Ohms |
| Insertion Loss | 2.7 dB |
| Mounting Type | Surface Mount |
| Package / Case | 32-VFQFN Exposed Pad |
| RF Type | General Purpose |
| Supplier Device Package | 32-QFN (4x4) |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 1.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 6.50 | |
| 100 | $ 5.15 | |||
| Digi-Reel® | 1 | $ 6.50 | ||
| 100 | $ 5.15 | |||
| Tape & Reel (TR) | 1250 | $ 4.48 | ||
Description
General part information
CHW1010-1-1.0
RF Switch IC General Purpose SP16T 50Ohm 32-QFN (4x4)
