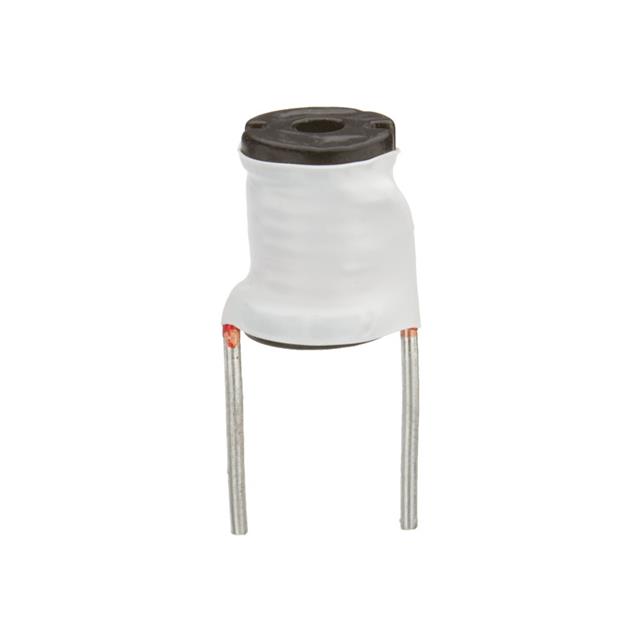

SPB-108
ActivePrem Magnetics, Inc.
FIXED IND 50UH 2.6A 54 MOHM TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SPB-108
ActivePrem Magnetics, Inc.
FIXED IND 50UH 2.6A 54 MOHM TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SPB-108 |
|---|---|
| Current - Saturation (Isat) | 11.1 A |
| DC Resistance (DCR) [Max] | 54 mOhm |
| Height - Seated (Max) [Max] [z] | 0.81 in |
| Height - Seated (Max) [Max] [z] | 20.57 mm |
| Material - Core | Ferrite |
| Mounting Type | Through Hole |
| Operating Temperature | 212 °F |
| Shielding | Unshielded |
| Size / Dimension [diameter] | 14.22 mm |
| Size / Dimension [diameter] | 0.56 " |
| Type | Wirewound, Drum Core |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 5 | $ 7.70 | |
| 25 | $ 7.32 | |||
| 50 | $ 6.93 | |||
| 100 | $ 6.55 | |||
Description
General part information
SPB-108
Unshielded Drum Core, Wirewound Inductor 54mOhm Max
