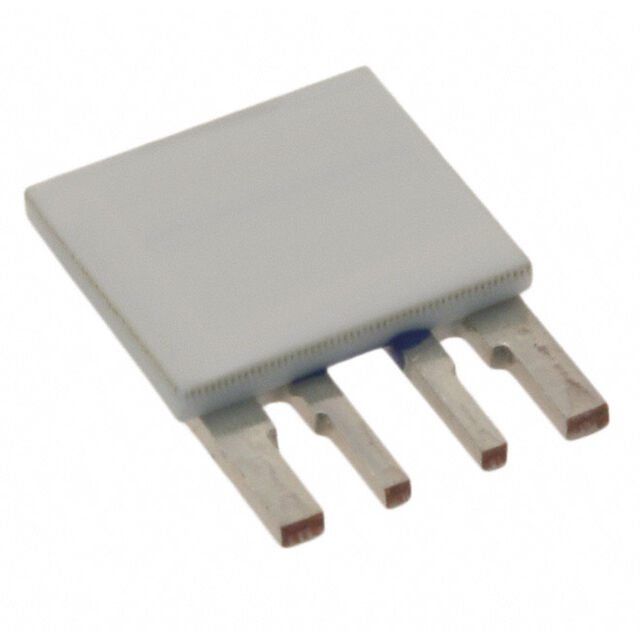

SR10-0.008-1%
ActiveCaddock Electronics Inc.
RES 0.008 OHM 1% 1W SR10
Deep-Dive with AI
Search across all available documentation for this part.
SR10-0.008-1%
ActiveCaddock Electronics Inc.
RES 0.008 OHM 1% 1W SR10
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SR10-0.008-1% |
|---|---|
| Composition | Metal Element |
| Features | Current Sense, Non-Inductive, Moisture Resistant |
| Height - Seated (Max) [Max] | 0.385 " |
| Height - Seated (Max) [Max] | 9.78 mm |
| Number of Terminations | 4 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -15 °C |
| Package / Case | SR10 |
| Power (Watts) | 1 W |
| Resistance | 8 mOhms |
| Size / Dimension [x] | 0.365 " |
| Size / Dimension [x] | 9.27 mm |
| Size / Dimension [y] | 2.29 mm |
| Size / Dimension [y] | 0.09 " |
| Supplier Device Package | SR10 |
| Temperature Coefficient [Max] | 200 ppm/°C |
| Temperature Coefficient [Min] | 0 ppm/°C |
| Tolerance | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 6.98 | |
| 10 | $ 6.22 | |||
| 25 | $ 6.11 | |||
| 50 | $ 5.38 | |||
| 100 | $ 4.42 | |||
| Tape & Reel (TR) | 250 | $ 4.22 | ||
| 500 | $ 3.93 | |||
| 750 | $ 3.78 | |||
| 1250 | $ 3.64 | |||
| 2500 | $ 3.60 | |||
Description
General part information
SR10-0.008-1%
8 mOhms ±1% 1W Through Hole Resistor SR10 Current Sense, Moisture Resistant, Non-Inductive Metal Element
Documents
Technical documentation and resources
No documents available
