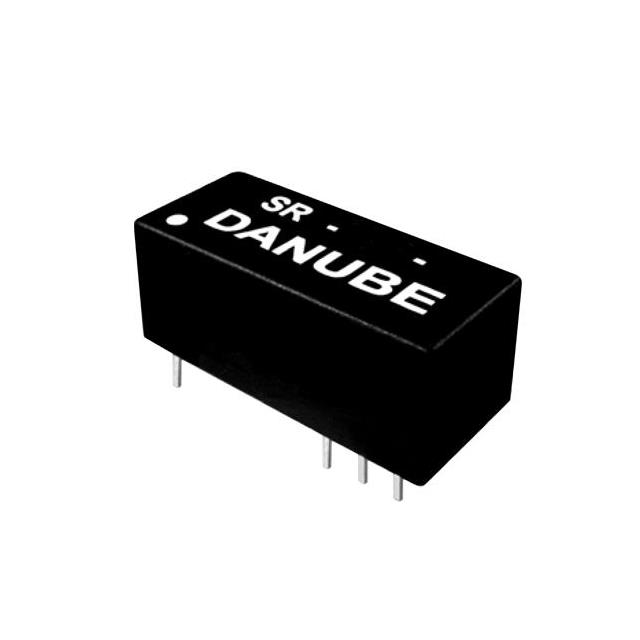

SRS-0515-2
ActiveDiwell Electronics
DC DC CONVERTER 15V 1W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SRS-0515-2
ActiveDiwell Electronics
DC DC CONVERTER 15V 1W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SRS-0515-2 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 67 mA |
| Efficiency | 58 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 71 °C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | 16-DIP Module, 8 Leads |
| Size / Dimension [x] | 0.89 in |
| Size / Dimension [x] | 22.6 mm |
| Size / Dimension [y] | 9.9 mm |
| Size / Dimension [y] | 0.39 " |
| Size / Dimension [z] | 8.4 mm |
| Size / Dimension [z] | 0.33 in |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Input (Min) [Min] | 4.5 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 1.60 | |
| 5 | $ 1.46 | |||
| 10 | $ 1.41 | |||
| 25 | $ 1.34 | |||
| 50 | $ 1.29 | |||
| 100 | $ 1.24 | |||
| 250 | $ 1.18 | |||
| 500 | $ 1.13 | |||
Description
General part information
SRS-0515-2
Isolated Module DC DC Converter 1 Output 15V 67mA 4.5V - 5.5V Input
Documents
Technical documentation and resources
