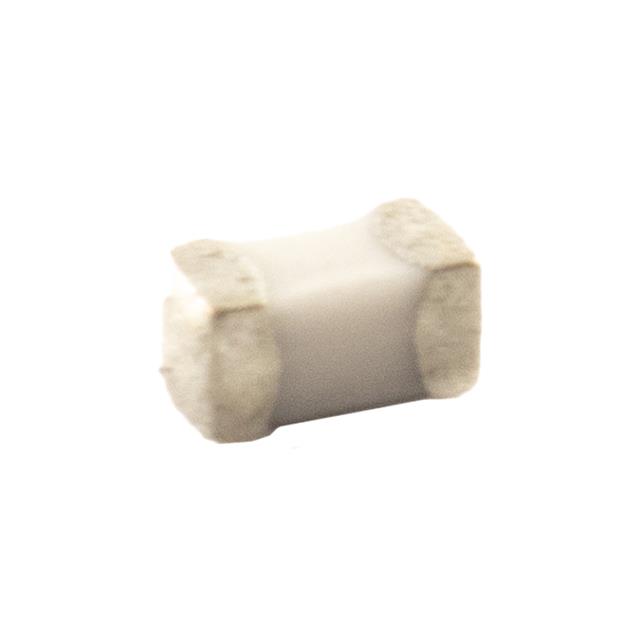

HFC03-68NJ-RC
ActiveAllied Components International
68NH +/-5% HI-FREQ CHIP INDUCTOR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HFC03-68NJ-RC
ActiveAllied Components International
68NH +/-5% HI-FREQ CHIP INDUCTOR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HFC03-68NJ-RC |
|---|---|
| Current - Saturation (Isat) | 100 mA |
| DC Resistance (DCR) [Max] | 1.5 Ohm |
| Frequency - Self Resonant | 1.1 GHz |
| Height - Seated (Max) [Max] [z] | 0.6 mm |
| Height - Seated (Max) [Max] [z] | 0.024 in |
| Inductance | 68 nH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ceramic |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 0402 (1005 Metric) |
| Q @ Freq | 8, 100 kHz |
| Shielding | Unshielded |
| Size / Dimension [x] | 1 mm |
| Size / Dimension [x] | 0.039 in |
| Size / Dimension [y] | 0.02 in |
| Size / Dimension [y] | 0.5 mm |
| Supplier Device Package | 0402 |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1 | $ 0.98 | |
| 5 | $ 0.95 | |||
| 10 | $ 0.90 | |||
| 15 | $ 0.85 | |||
Description
General part information
HFC03-68NJ-RC
68 nH Unshielded Inductor 1.5Ohm Max 0402 (1005 Metric)
