SSL-LX100T123SYC
ObsoleteLumex Opto/Components Inc.

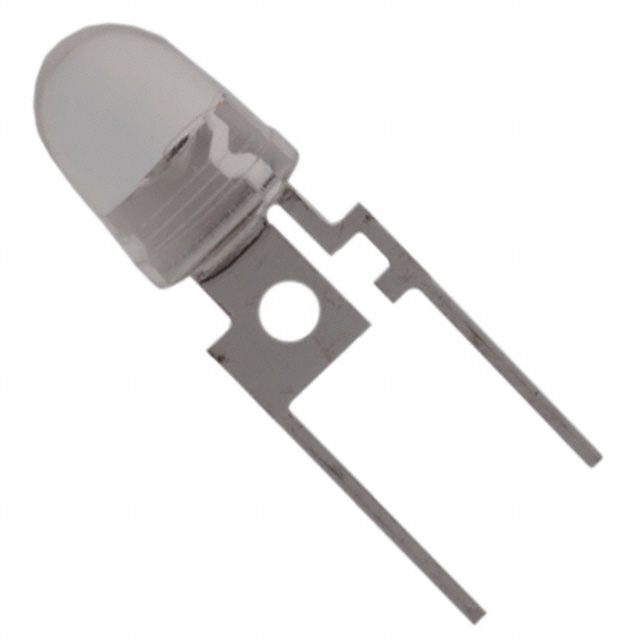

LED TITANBRITE YLW 590NM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SSL-LX100T123SYC
ObsoleteLumex Opto/Components Inc.
LED TITANBRITE YLW 590NM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SSL-LX100T123SYC |
|---|---|
| Color | Yellow |
| Current - Max [Max] | 350 mA |
| Current - Test | 350 mA |
| Lumens/Watt @ Current - Test | 42 lm/W |
| Luminous Flux @ Current/Temperature | 35 lm |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension [diameter] | 10 mm |
| Size / Dimension [diameter] | 0.394 in |
| Viewing Angle | 25 ° |
| Voltage - Forward (Vf) (Typ) | 2.4 V |
| Wavelength | 590 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SSL-LX100T123SYC
LED Lighting Color TitanBrite™ Yellow 590nm (Typ) Radial
Documents
Technical documentation and resources
